With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

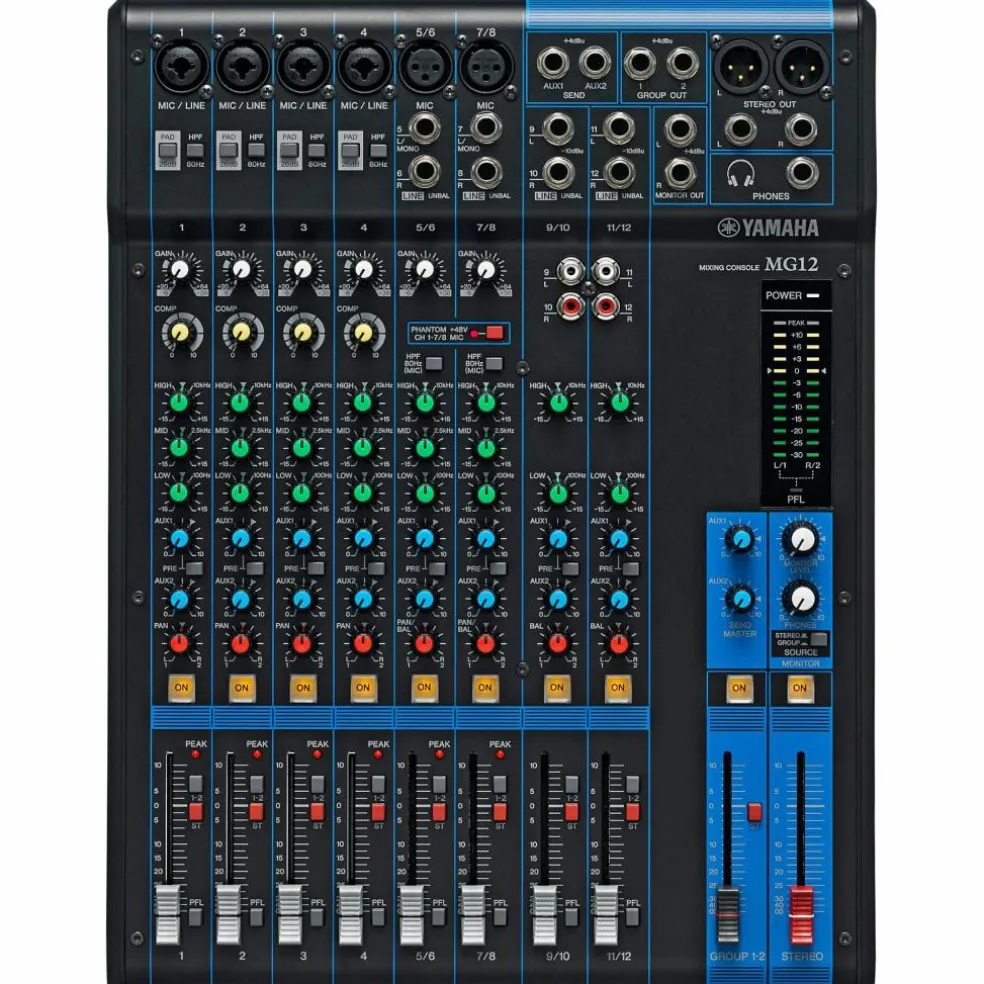

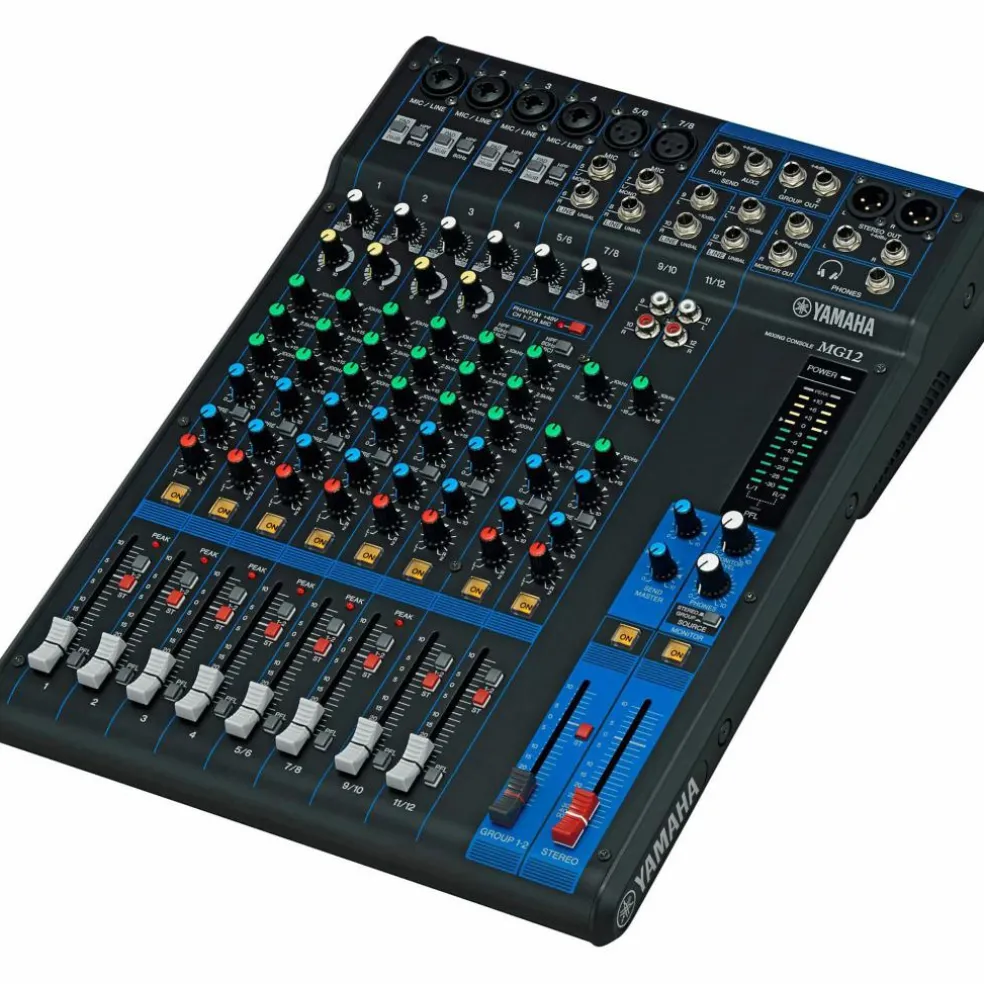

- 12-Channel Mixing Console
- Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
- 2 GROUP Buses + 1 Stereo Bus
- 2 AUX (incl. FX)
- “D-PRE” mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- PAD switch on mono inputs
- +48V phantom power
- XLR balanced outputs

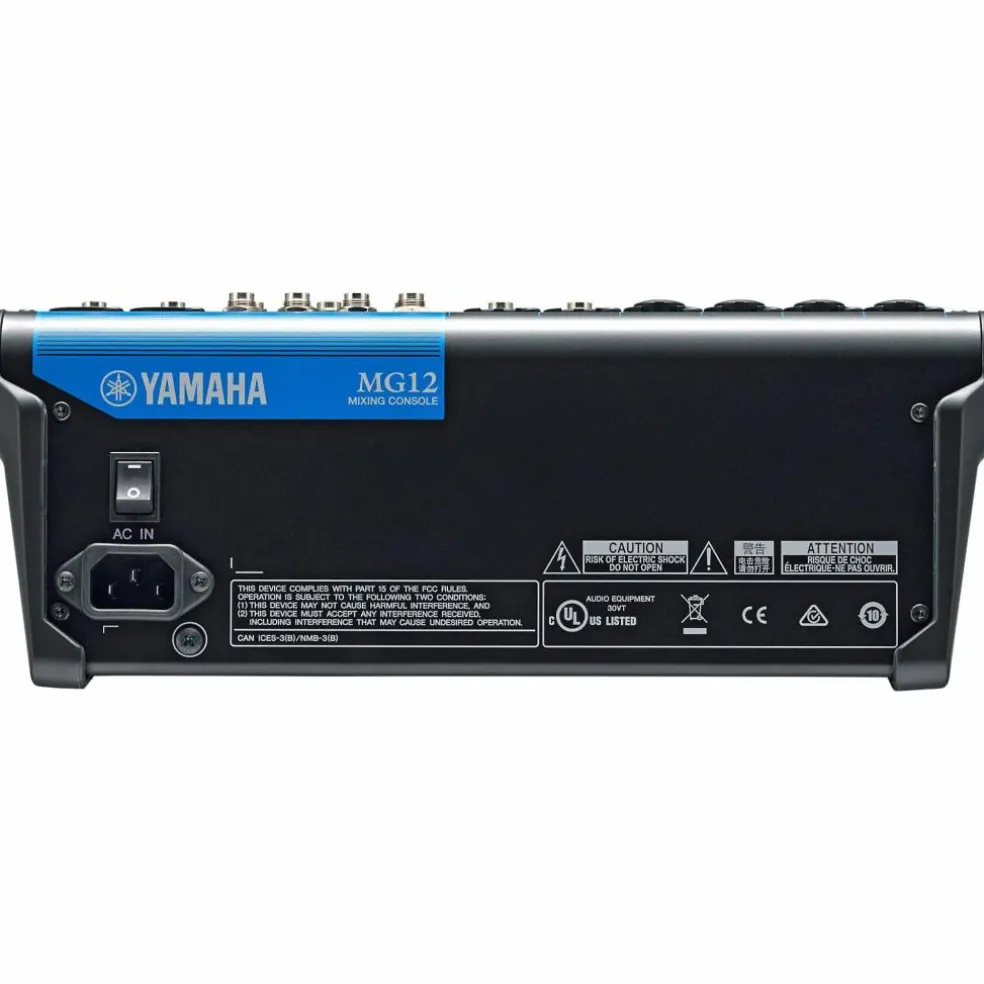

- Internal universal power supply for world-wide use
- Optional Rack Mount Kit RK-MG12 Available

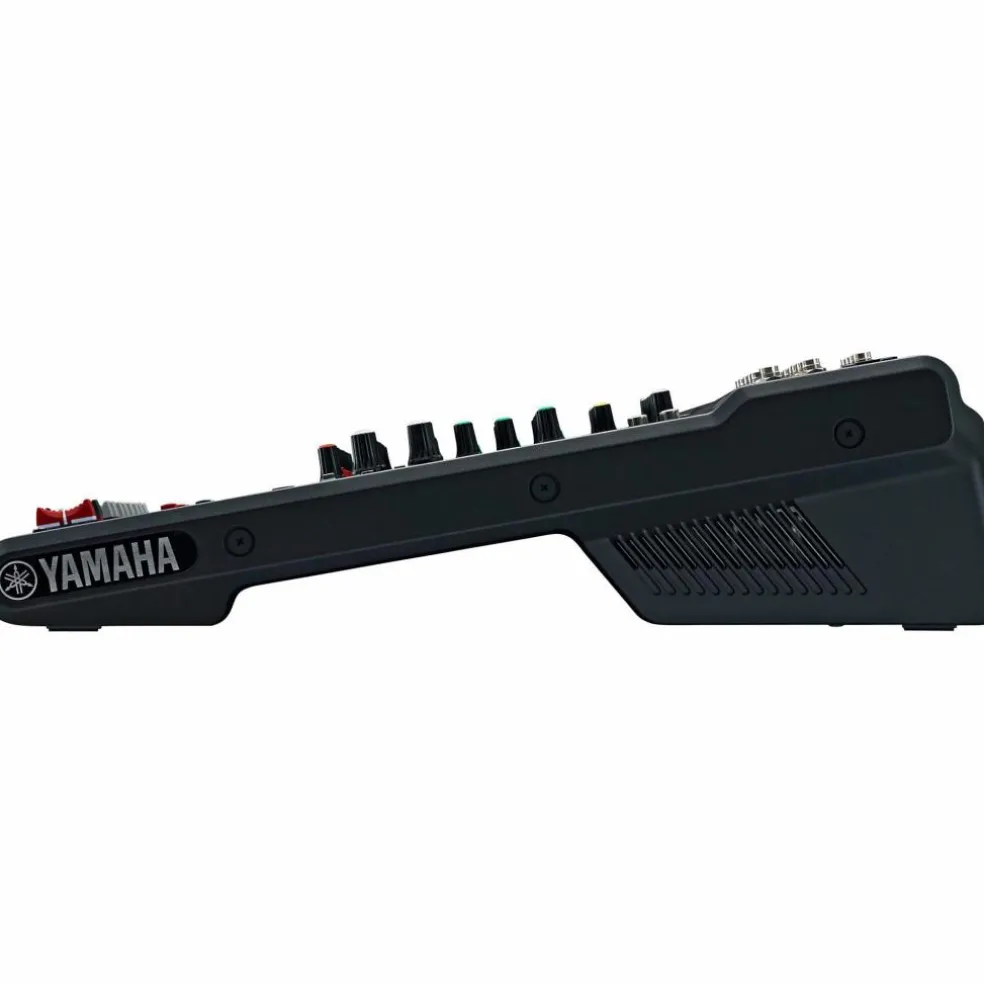

- Metal chassis
- On-board processors : SPX algorithm: 24 programs
- Phantom power: +48 V
- Input Channels: 12 Mono[MIC/LINE], stereo[LINE]: 4
- Output Channels: STEREO OUT: 2
- MONITOR OUT: 1
- PHONES: 1
- AUX SEND: 1
- Bus: Stereo: 1, GROUP: 4, AUX[FX]: 4
- Input Channel Function
- PAD: 26 dB (Mono)
- HPF: 80 Hz, 12 dB/oct (Mono)
- COMP: 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
- EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
- EQ MID: Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
- EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
- PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
- Level Meter: 2 x 12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -20, -25, -30 dB]
