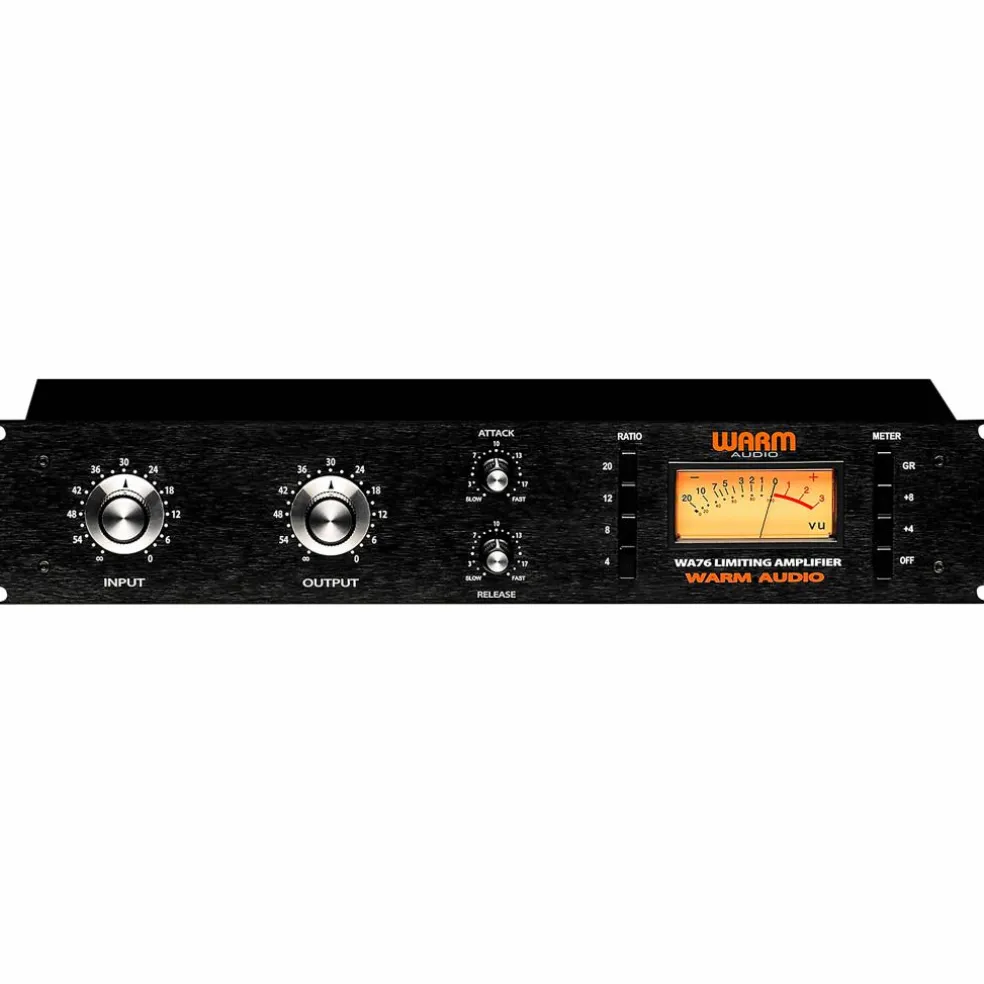

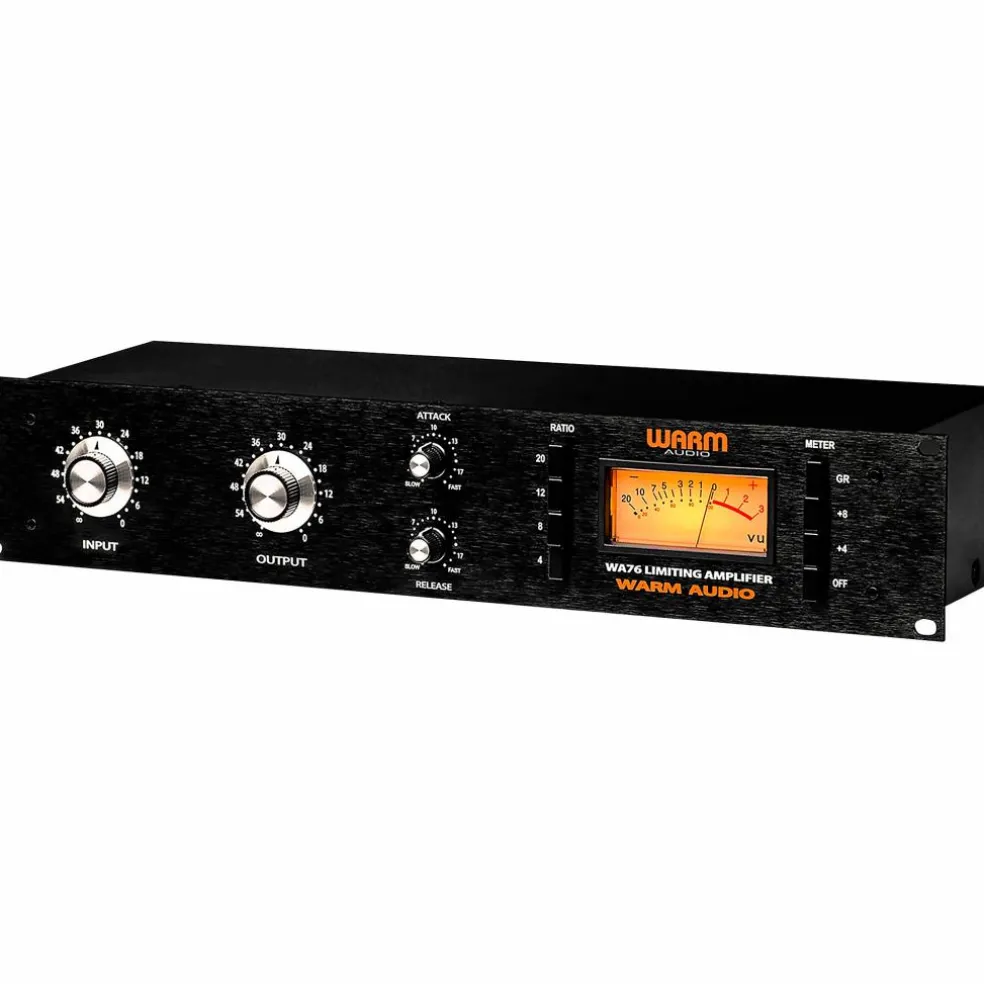

- True to the Classic 1176 compressor in design and performance

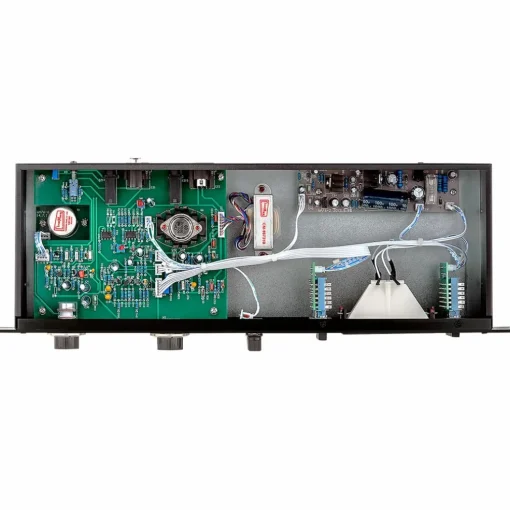

- Completely discrete signal path
- Modeled after the D revision
- Utilizes USA made CINEMAG input and output transformers
- Supports the famous “all buttons in” ratio setting
- Ultrafast attack time
- Class-A line-level output amplifier
- Input impedance: 600 ohms, bridges-T control (floating)
- Frequency Response ± 1dB 20Hz to 20kHz

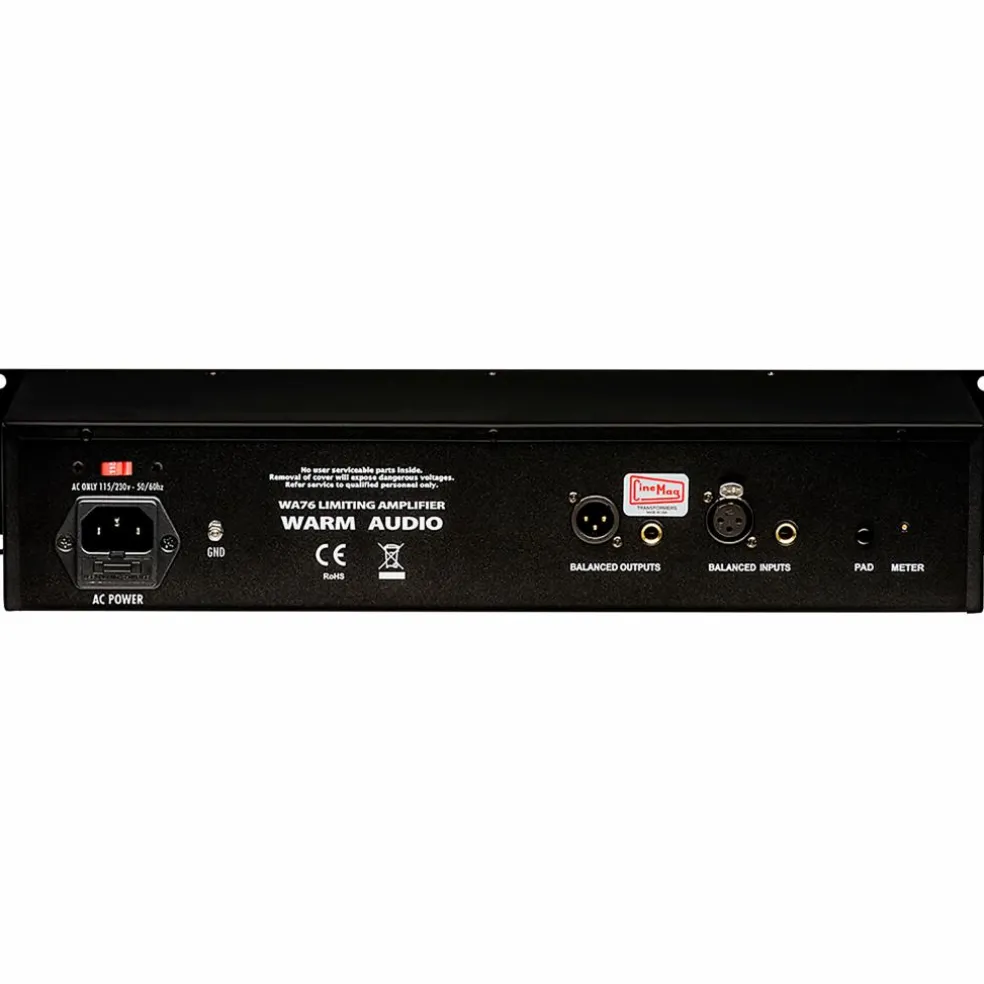

- XLR and TRS inputs
- XLR and TRS outputs
- 55dB of gain
- Less than 0.4% total harmonic distortion from 50Hz to 20kHz with limiting
- Signal to noise ratio is greater than 74dB at +25dBm
- EIN -104.1dBm
- Attack time, 20 microseconds to 800 microseconds
- Release time, 50 milliseconds to 1 second
- Meter provides dB gain reduction and dB output
- Internal power supply, external 24V AC power transformer
- 19″ rackmount chassis, 2U
- 1-year warranty
