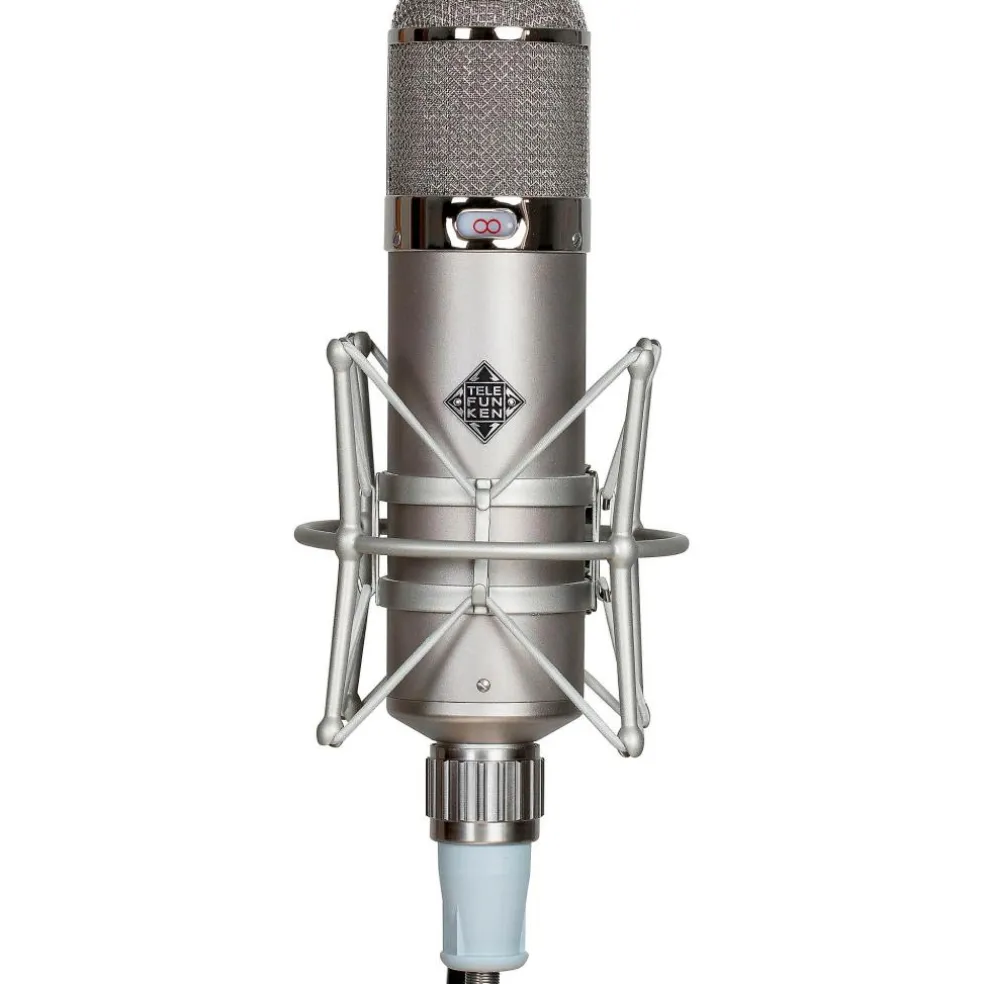

Name: TELEFUNKEN U48 Tube Condenser Microphone With VF14K Tube
SKU: 84280
Availability: InStock

The TELEFUNKEN Diamond Series U48 represents a meticulous recreation of one of the most revered microphones in recording history. Originally launched in 1958, the U48 earned its place in studios worldwide thanks to its rich, authoritative midrange and extended low-end response. The U48 even gained the admiration of Beatles producer George Martin, who used it extensively on the band’s iconic recordings. Now, TELEFUNKEN has brought this classic back to life with stunning accuracy for a new generation of audio engineers and musicians.

US-made historically accurate M7 center-terminated capsule
TELEFUNKEN Elektroakustik VF14K vacuum tube
Point-to-point wired in the USA true to the original design
Includes American-made vintage-compatible cable

Type: Vacuum Tube Condenser
Polar Pattern: Cardioid, Figure-8
Frequency Range: 20Hz–20kHz, ±3dB
Power Source: External Power Supply
Capsule: TELEFUNKEN Elektroakustik M7 – Center-Terminated Large Diaphragm
Tube: TELEFUNKEN Elektroakustik VF14K
Transformer: TELEFUNKEN Elektroakustik BV8
Sensitivity: 24.5 mV/Pa, ±1dB
THD at 1kHZ at 1Pa (Amplifier): < 0.3%
Output Impedance: 200 ohm
Maximum SPL (for 1% THD): 127dB
S/N Ratio: 85dBA
Self Noise (Amplifier): 9dBA
Dimensions: 240 x 60 mm
Weight: 620g

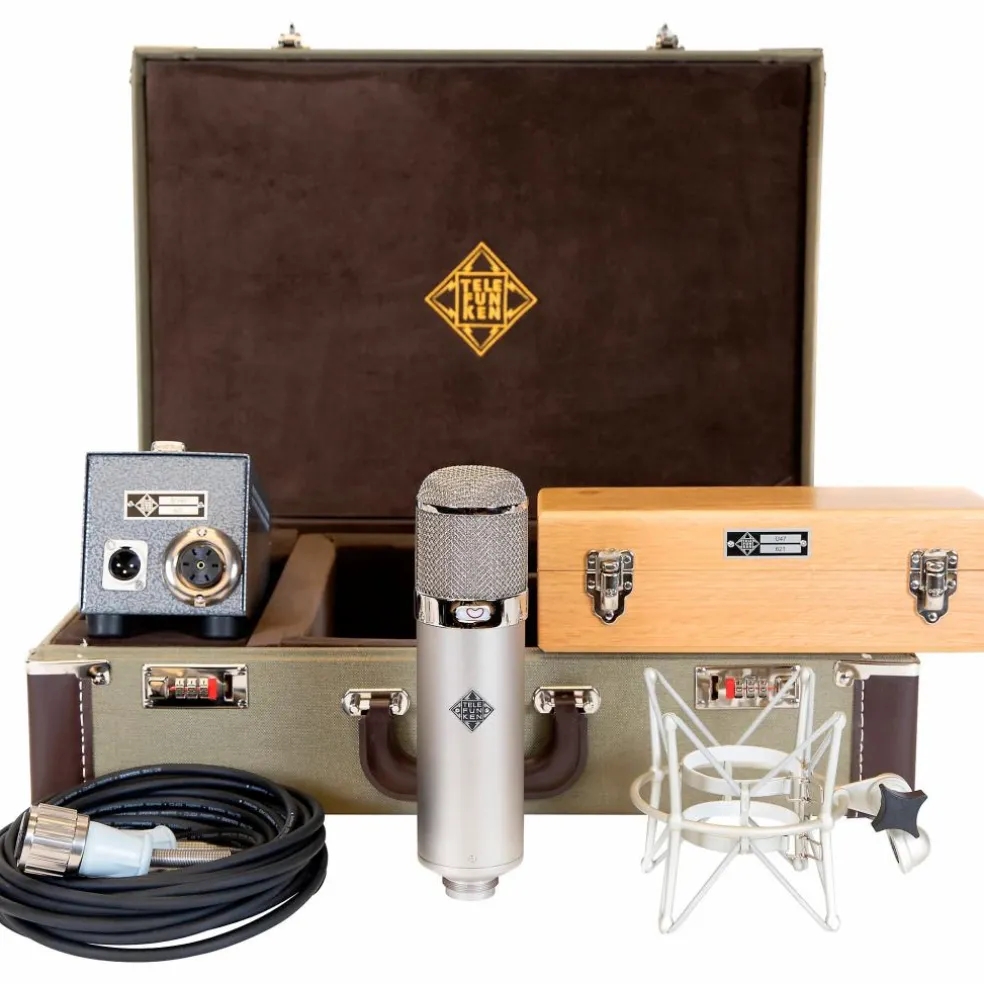

Included Accessories: Tube Mic Cable, Power Supply, Shockmount, Wooden Box, Flight Case
