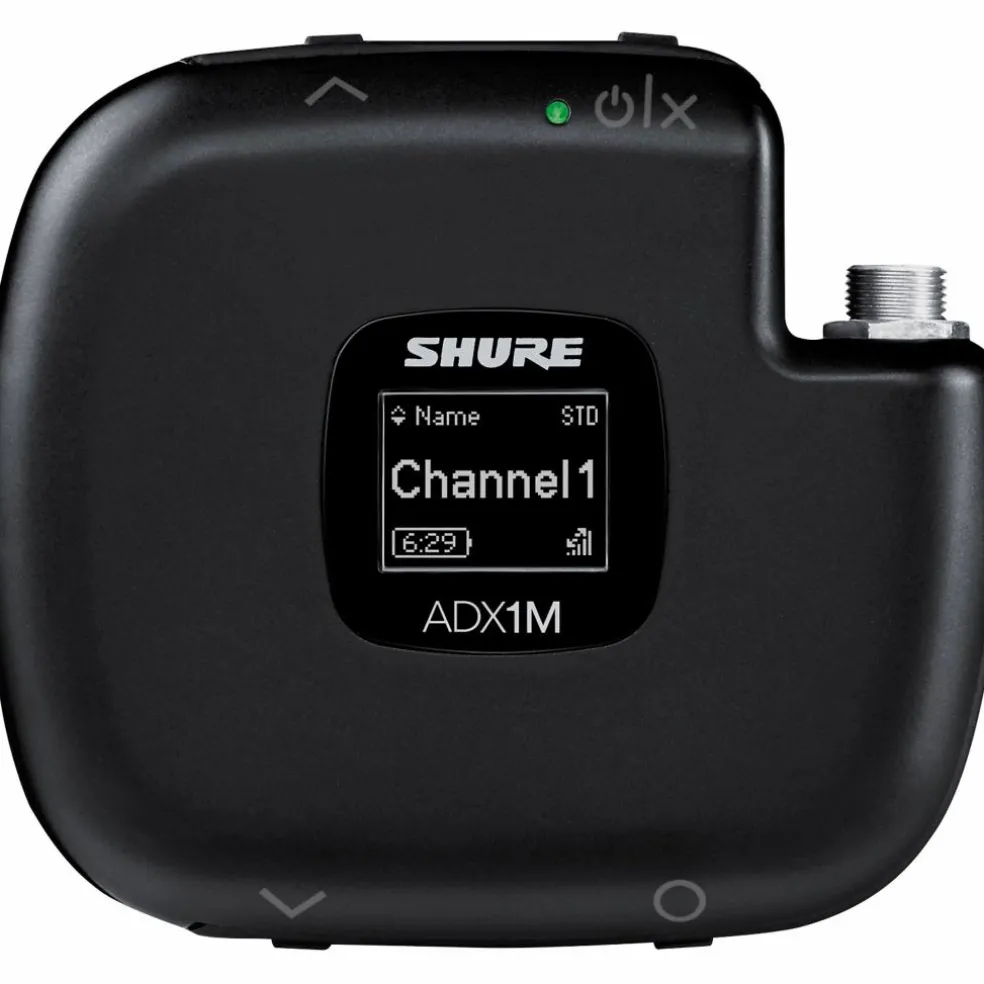

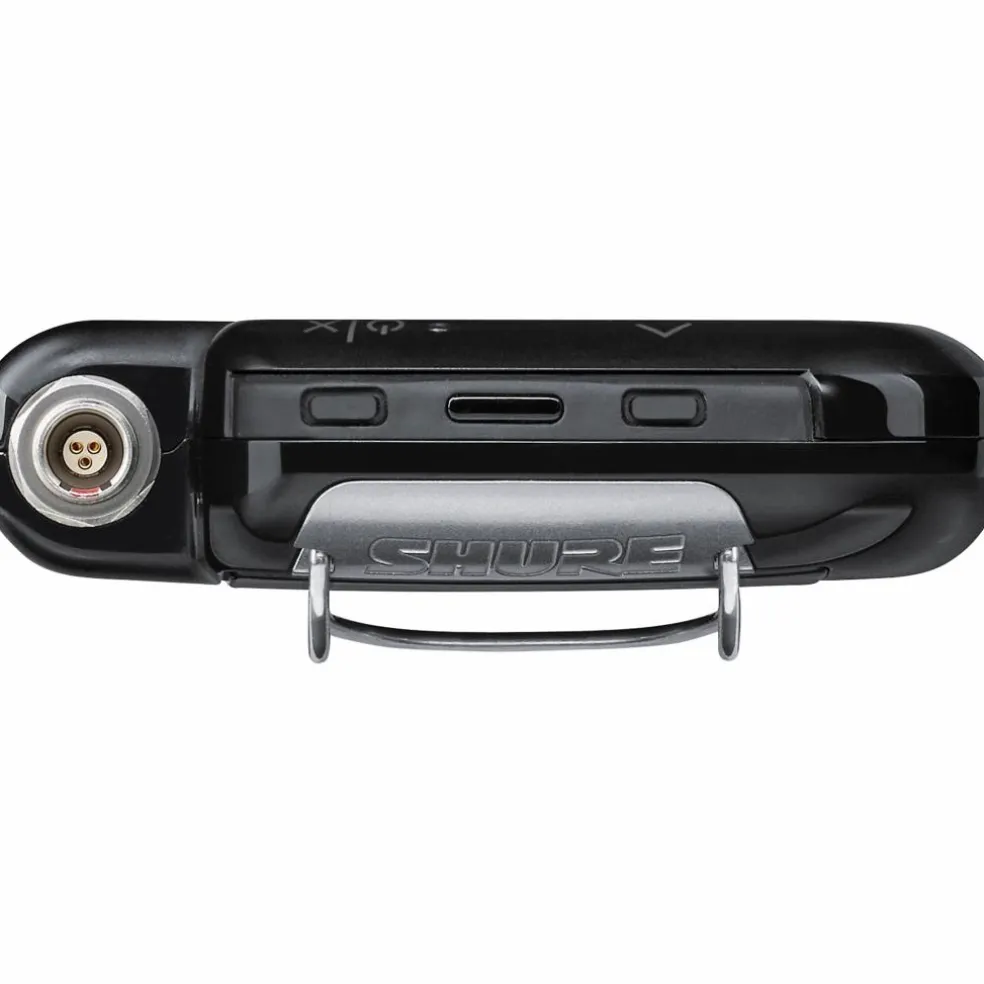

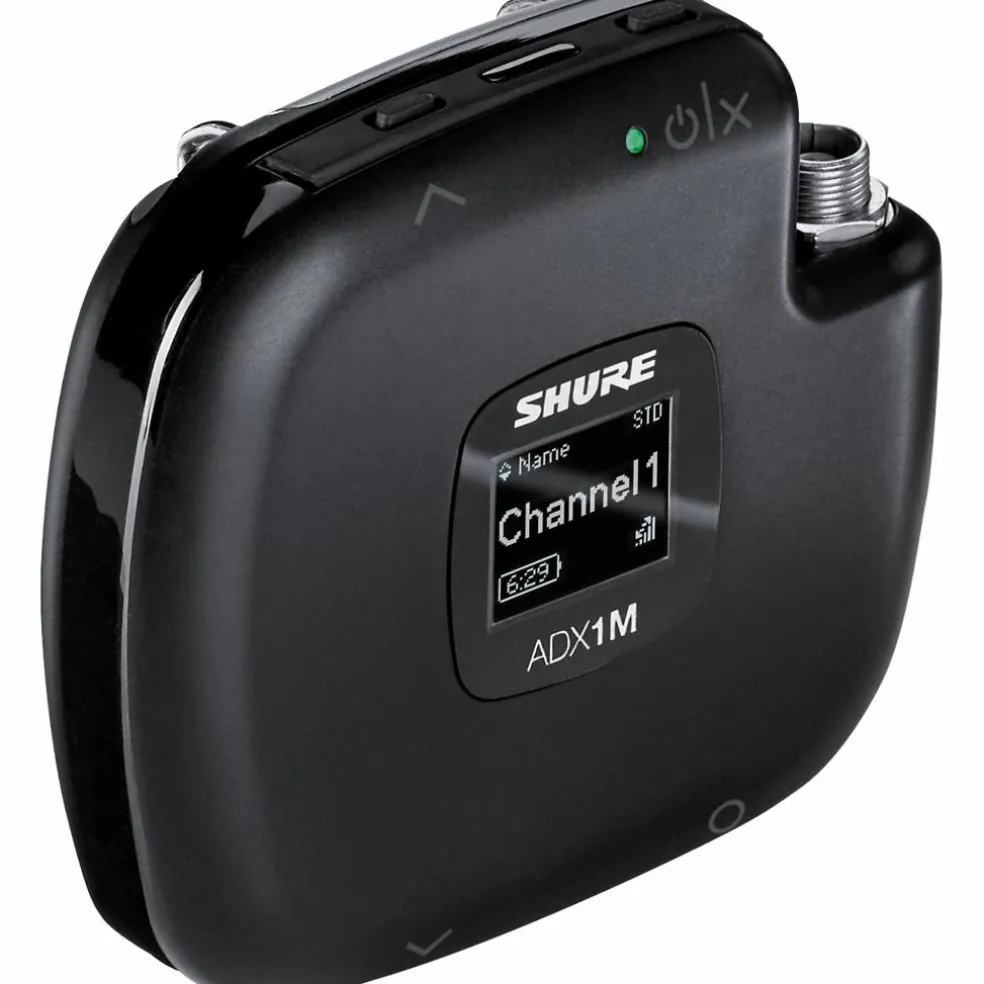

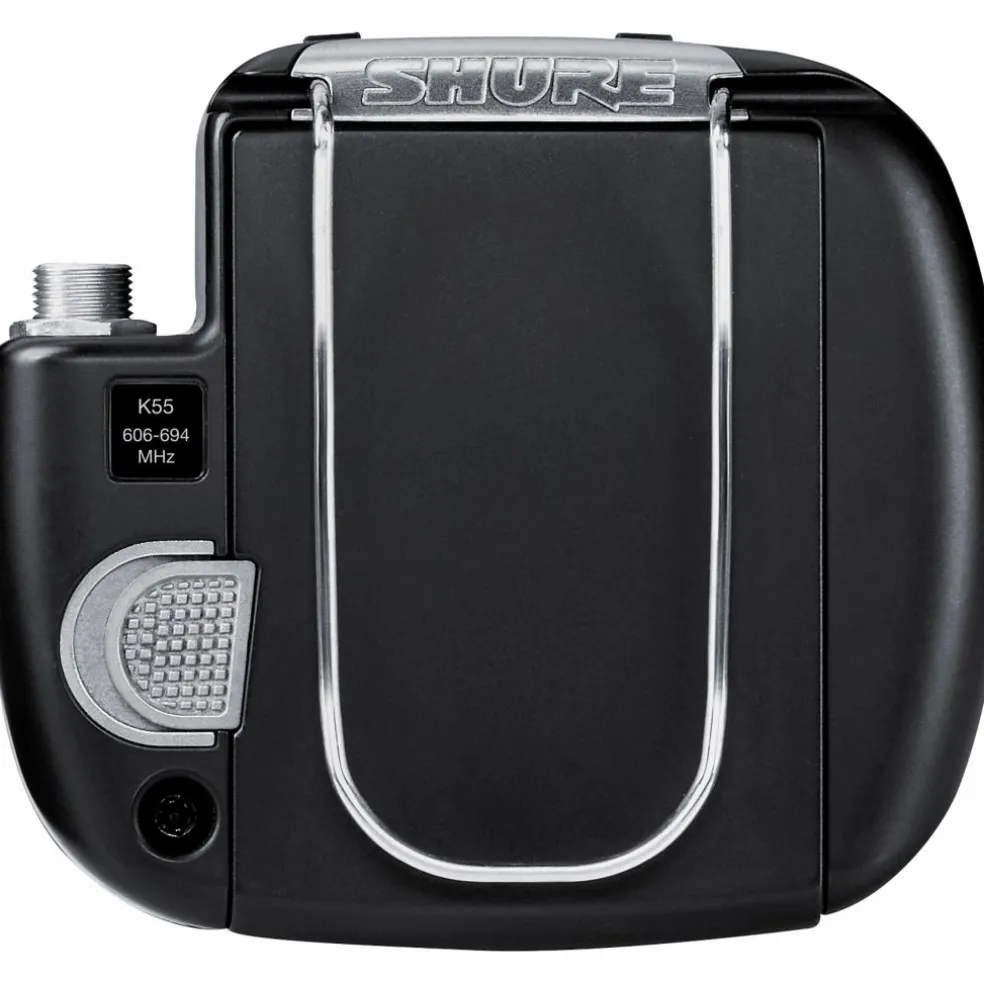

Shure Axient Digital ADX1M Micro Bodypack Transmitter with LEMO connector Band G57

• 470–960 MHz
• Note: Varies by region (See Frequency Range and Ouput Power table)

Working Range:

• 100 m (330 ft)
• Note: Actual range depends on RF signal absorption, reflection and interference.

RF Tuning Step Size:

• 25 kHz, varies by region

Image Rejection:

• >70 dB, typical

RF Sensitivity:

• −98 dBm at 10-5 BER

Latency:

• Standard mode: 2.0 ms
• High Density mode: 2.9 ms

Audio Frequency Response:

• AD1: 20 Hz – 20 kHz (±1 dB)
• AD2: 20 Hz – 20 kHz (±1 dB)
• ADX1: 20 Hz – 20 kHz (±1 dB)
• ADX1M: 20 Hz – 20 kHz (±1 dB)
• ADX2/ADX2FD: 20 Hz – 20 kHz (±1 dB)
• Note: Dependent on microphone type

Audio Dynamic Range:

• A-weighted, typical, System Gain @ +10:
• XLR Analog Output: 120 dB (A-weighted); 117 (unweighted)
• Dante Digital Output: 130 dB (A-weighted); 126 (unweighted)

Total Harmonic Distortion:

−6 dBFS input, 1 kHz, System Gain @ +10
<0.01%:
System Audio Polarity:

• Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.

Operating Temperature Range:

• −18 °C (0 °F) to 50 °C (122 °F)
• Note: Battery characteristics may limit this range.

Storage Temperature Range:

• −29 °C (−20 °F) to 65 °C (149 °F)
• Note: Battery characteristics may limit this range
