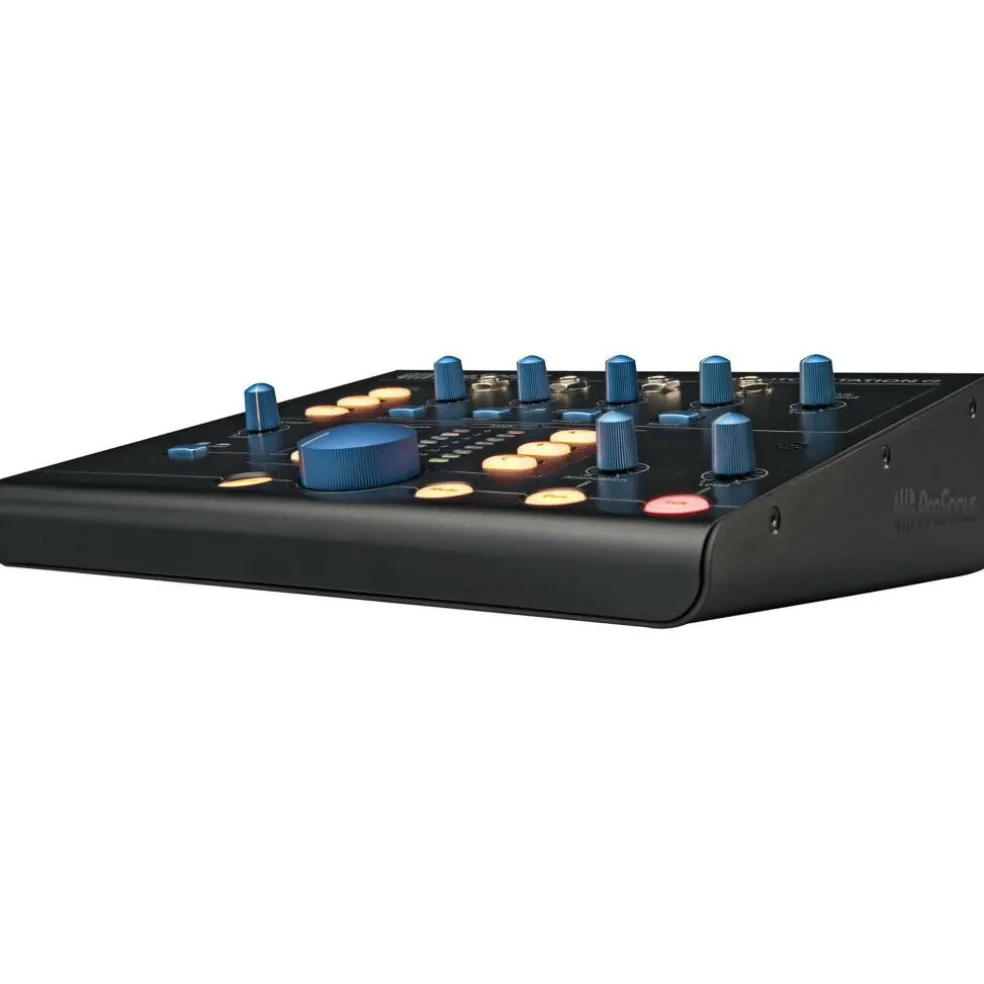

PreSonus Monitor Station V2 Desktop Studio Control Center
Original price was: $299.00.$81.00Current price is: $81.00.
PreSonus has introduced the Monitor Station V2, a desktop control hub that puts you in complete command of your studio monitoring setup. The Monitor Station V2 provides intuitive management of multiple audio sources and speaker sets so you can instantly audition various mixes or check how your tracks translate across different systems.
Manage Multiple Sources and Monitor Sets
Easily switch between two balanced 1⁄4″ TRS inputs, an S/PDIF digital input and an aux input via unbalanced RCA and 1/8″ TRS connectors. Each input can be routed to the main and cue outputs, which feed three selectable monitor pairs. Level match your monitors by setting the output level of each pair individually.
Give Musicians Their Own Mix
The Monitor Station V2 provides four headphone amplifiers, each with its own level control and source selector. Send the main mix to control room monitors while routing a click track to the drummer, a vocal cue to the singer and a guitar cue to the guitarist. Talk to the whole band through the built-in talkback mic.
Manage with Precision and Ease
Bright 8-segment LED meters provide precise level monitoring and can be calibrated to show +4dBu, +10dBu or +18dBu. A large master level knob gives you smooth control of monitor volume. Engauge the mono switch to check for phase issues or use the dim switch to temporarily reduce monitor level by up to 24dB. Mute your monitors with the touch of a button. An intuitive layout and workflow make the Monitor Station V2 easy to use so you can focus on the music.
High-Quality Components for Superior Sound
PreSonus designed the Monitor Station V2 with high-quality components to provide pristine, transparent monitoring. Gold-plated connectors, high-headroom headphone amps and premium analog circuitry deliver audio without coloration, noise or distortion so you can make mix decisions with confidence.

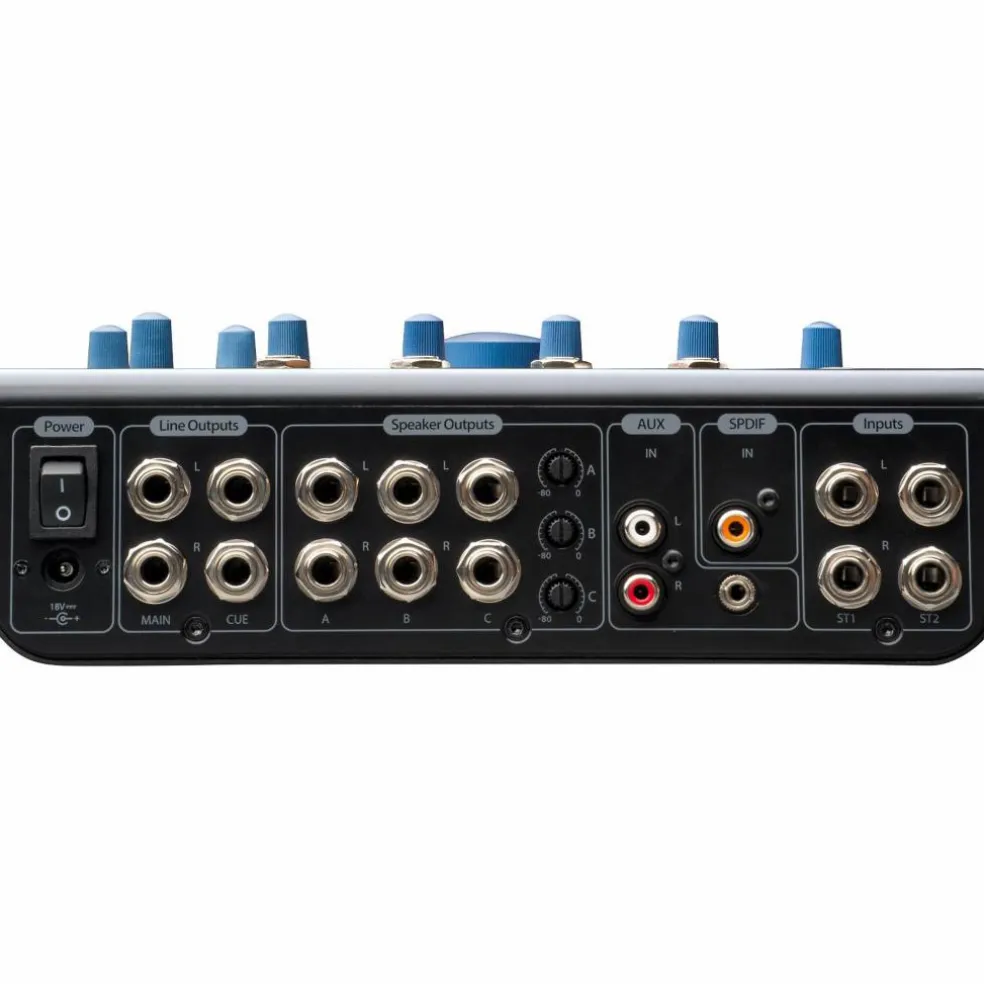

- 2 Stereo pairs of ¼” TRS inputs
- 1 Stereo pair of RCA Aux inputs
- 1 Stereo S/PDIF coaxial (RCA) digital input (44.1/48/88.2/96 kHz)
- 3 Stereo pairs of ¼” TRS speaker outputs with level controls
- 1 Stereo pair of ¼” TRS Main outputs
- 1 Stereo pair of ¼” TRS Cue outputs
- 4 ¼” TRS screaming-loud stereo headphone outputs

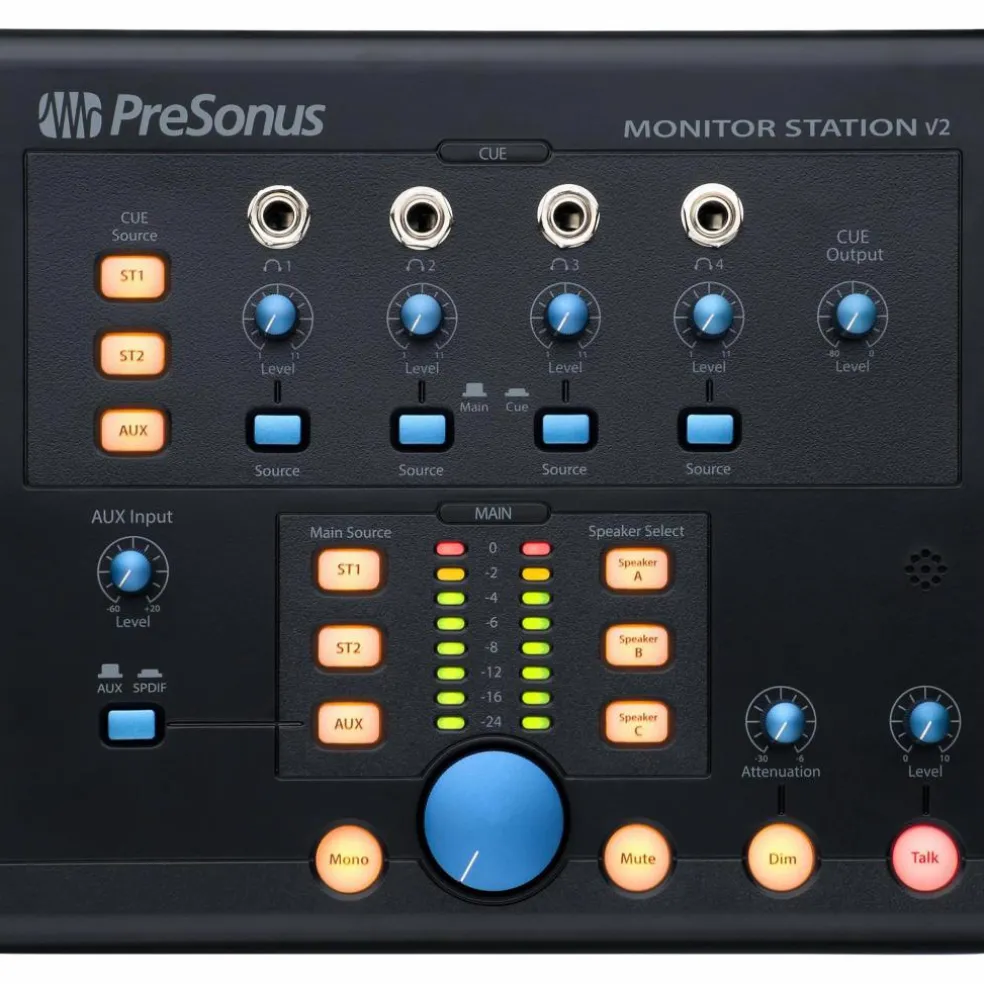

Controls
- Large Main level control
- 3 Individual Main Source (ST1, ST2, Aux) select switches
- 3 Individual Speaker Select switches
- Cue section with Source select (ST1, ST2, Aux) and output-level control
- Aux-S/PDIF Select switch
- Aux Input level control
- Main Mute, Mono, and Dim switches with variable Dim attenuation
Additional Features
- 8-segment color LED input meters with selectable reference level
- Built-in electret-condenser talkback microphone with input-gain control and Talkback button
- Convenient desktop design
- Internal Talkback Microphone
- Gain Range +15 to +55 dB
- Type Electret condenser
- Sensitivity -42 dB
- Stereo 1 and Stereo 2 Inputs
- Type ¼” TRS Active Balanced
- Input Impedance (Balanced) 10 k?
- S/N Ratio (1 kHz @ +10 dBu, Unity Gain) >105 dB
- THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain) <0.0075%
- Frequency Response (±0.5 dB) 10 Hz to 65 kHz
- Noise Floor (20 Hz to 20 kHz, 150? input termination) -96 dBu
- Maximum Input Level (Minimum Gain, 1 kHz @ 0.5% THD+N) +22 dBu
- Auxiliary Inputs
- Type RCA Active Unbalanced
- Input Impedance 47.5 k?
- S/N Ratio (1 kHz @ 0 dBu, Unity Gain) >115 dB
- THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain) <0.01%
- Frequency Response (±0.5 dB) 10 Hz to 50 kHz
- Gain Range 80 dB to +10 dB
- S/PDIF
- Types RCA 75? coax
- Dynamic Range 113 dB
- THD+N 0.0025% (1 kHz @ -1 dBFS)
- Maximum output at 0 dBFS +18 dBu
- Sample Rates 44.1, 48, 88.2, 96 kHz
- Input Meters (ST1, ST2, and Aux only)
- Type Dual 8-segment LED w/peak hold
- Sensitivity Range -24 dB to 0 dB
Audio Outputs
- Type ¼” TRS Active Balanced
- Output Impedance (Balanced) 51?
- THD+N (unwtd, 1 kHz @ 0 dBu, Unity Gain) <0.01%
- Frequency Response (±0.5 dB) 10 Hz to 50 kHz
- Speaker A, B, and C
- Trim Range -80 dB to 0 dB
- Main Level Range -80 dB to 0 dB
- Dim Attenuation Range -30 dB to -6dB
- Cue
- Cue Level Range -80 dB to 0 dB
- Dim Attenuation (Talkback activated) -20 dB
- Headphones
- Type ¼” TRS Active Stereo
- Maximum Output (60? load) 150 mW / channel
- Frequency Response (±1.0 dB) 10 Hz to 50 kHz
Power
- Power Supply Type External DC Transformer/Internal Line
- Input Connector Type Barrel, 5.5 mm outside diameter, 2.1 mm inside diameter
- Monitor Station Input Voltage Range 18 VDC
- Power Requirements (Continuous) 10W
Physical
- Dimensions
- Height 2.5″ (63.5 mm)
- Depth 8.5″ (216 mm)
- Width 9″ (228.6 mm)
- Weight 6 lbs. (4.54 kg)
