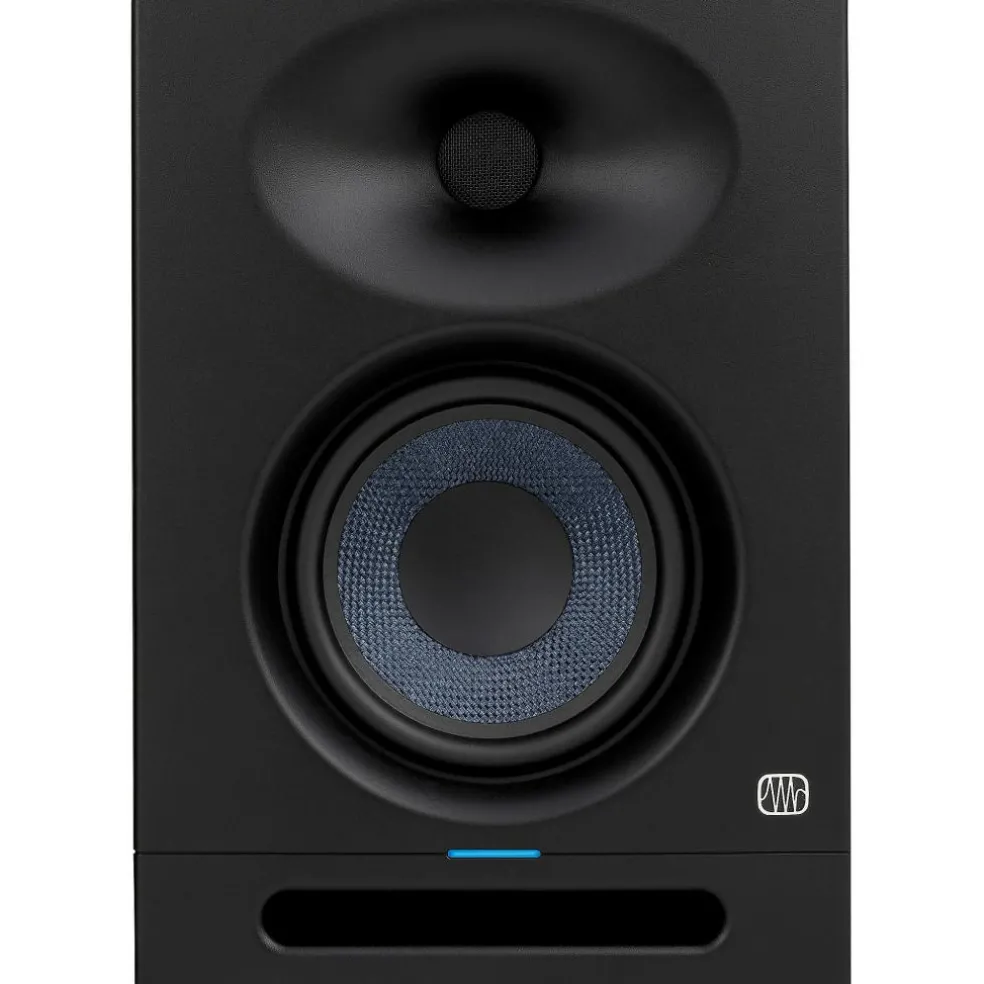

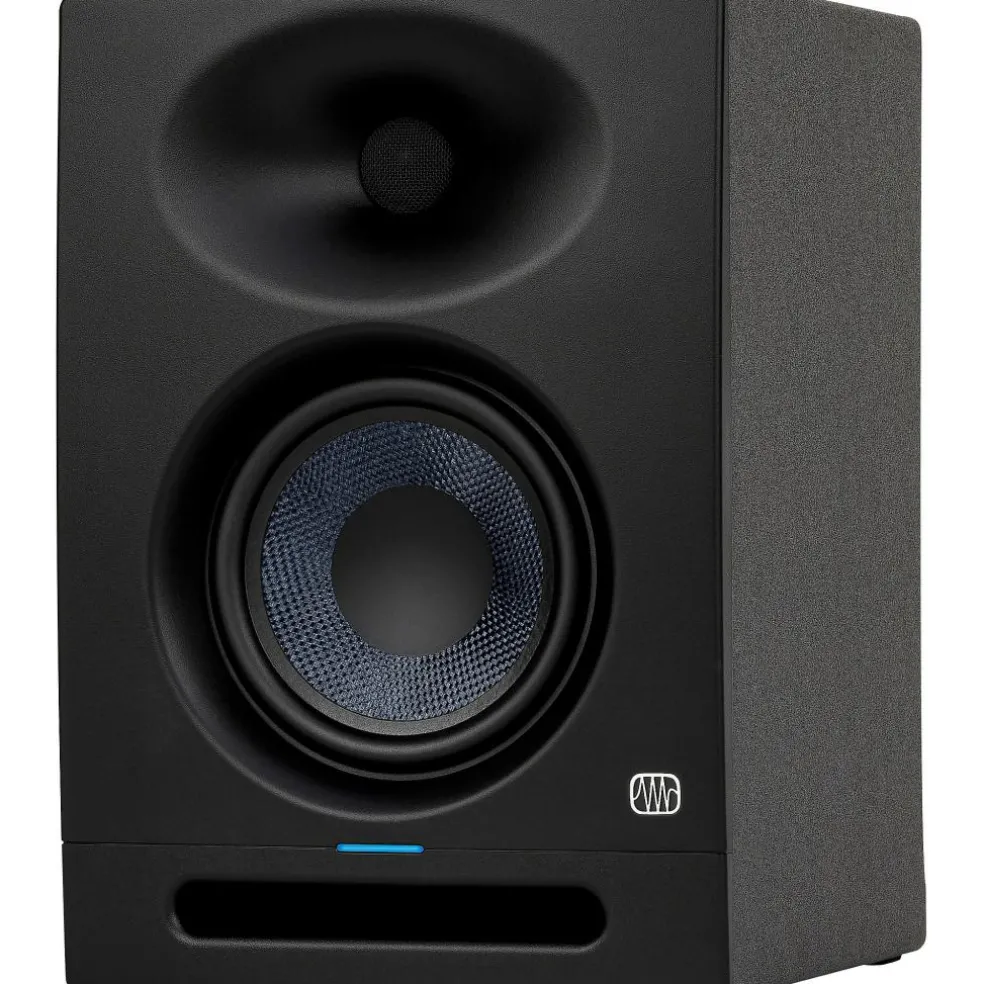

The PreSonus Eris Studio 5 active reference monitor is a 2-way system consisting of a 5.25″ woven-composite woofer and a 1″ silk-dome high-frequency driver. Noted for its detail and transparency, the Studio 5 speaker brings superior sound quality to home and project studios. This offers producers and engineers the fidelity they need to make informed mixing and mastering decisions for music that sounds great on any playback system—most importantly, ensuring it translates to consumer devices. The second-generation Eris Studio 5 contains substantial updates to its predecessor, improving both low- and high-end frequency response for even greater accuracy from the already award-winning PreSonus speaker formula. With an ideal combination of physical size, low-end extension and total volume output, Eris Studio 5 monitors are an exceptional reference speaker for small- or medium-size tracking and mixing rooms.    Â
- 5.25″ woven-composite, low-frequency transducer
- 1″ (25 mm), ultralow-mass, silk-dome, high-frequency transducer
- 120º(H) x 60º(V) EBM waveguide for a wide sweet spot
- Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing
- 80W, Class-AB bi-amplification
- 48Hz to 20kHz frequency response
- 102dB SPL (Peak, @ 1 meter)
- Acoustic Tuning controls: HF (±6dB, continuously variable); Midrange (±6dB, continuously variable), and Acoustic Space (flat, -2, -4dB), plus high-pass filter (Off, 80Hz, 100Hz)
- RF interference, output-current limiting, over-temperature, transient, subsonic protection and amplifier “soft start” feature (eliminates popping on power up)
- Internal power supply with IEC connector and power switch with on/off LED

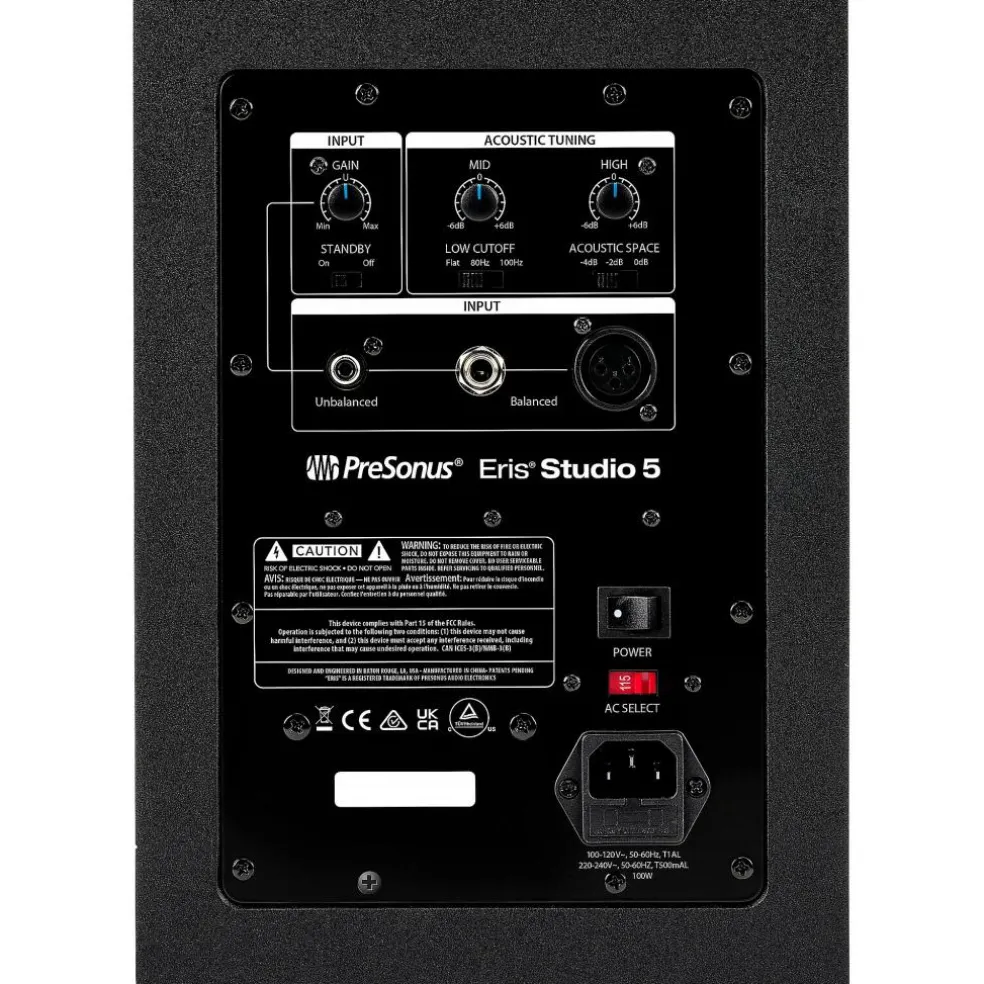

- Balanced XLR and 1/4″ inputs and unbalanced RCA inputs
- Frequency response: 48Hz to 20kHz
- Peak SPL: 102dB (@ 1M)
- LF amplifier power: 45W, Class-AB
- HF amplifier power: 35W, Class-AB
- LF driver: 5.25″ woven composite
- HF driver: 1″, silk-dome
- Inputs (1 each): Balanced XLR, balanced 1/4″ TRS, unbalanced RCA
- Controls: Volume, High frequency, Low frequency, Acoustic space, Low cut, Power saver
- Dims (HxWxD): 11.48″ x 8″ x 8.78″
- Weight: 11.46 lb.
