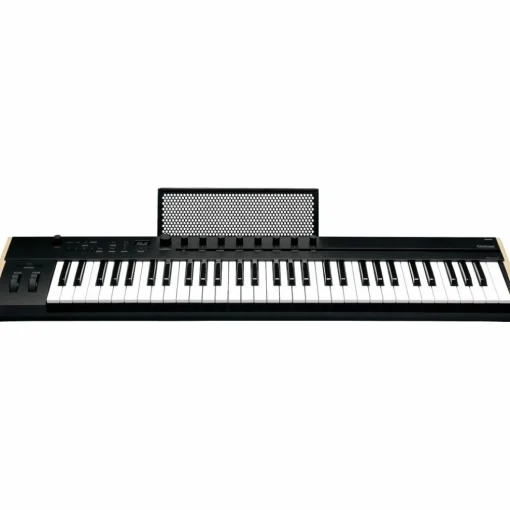

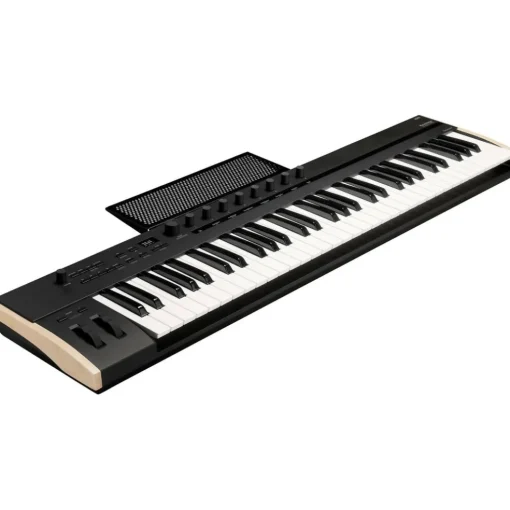

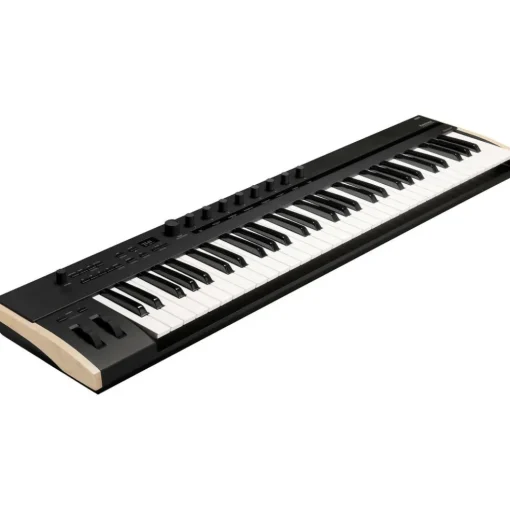

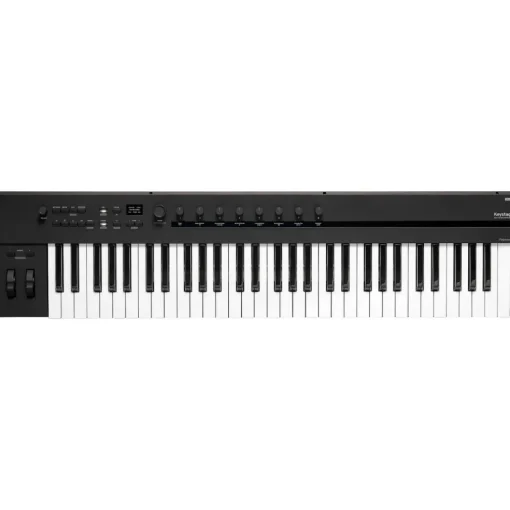

KORG Keystage MIDI Keyboard Controller With Polyphonic Aftertouch 61 Key

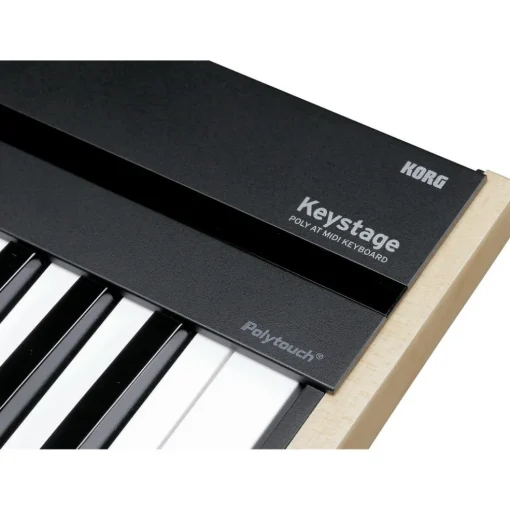

• Keystage-49: Polytouch keyboard*, 49 keys
• Keystage-61: Polytouch keyboard*, 61 keys
• Features velocity sensitivity, aftertouch and polyphonic aftertouch
• Velocity curves: 21 (-10-0-+10)
• Octave range: 7 (-3-0-+3)

Controllers

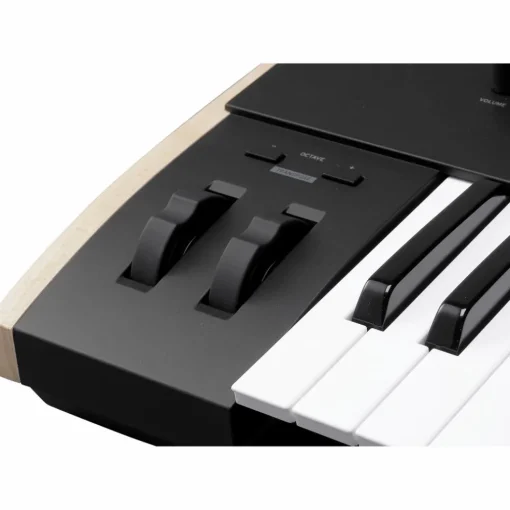

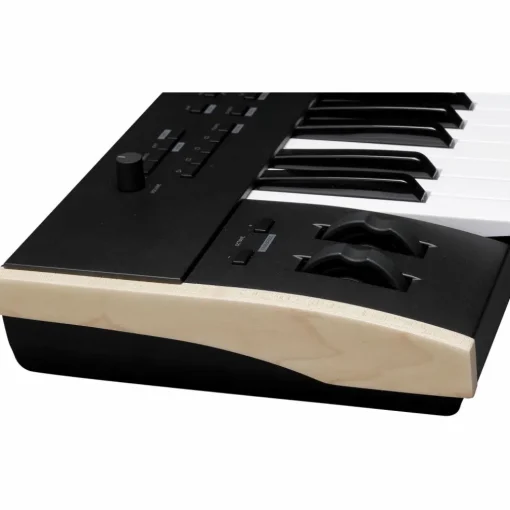

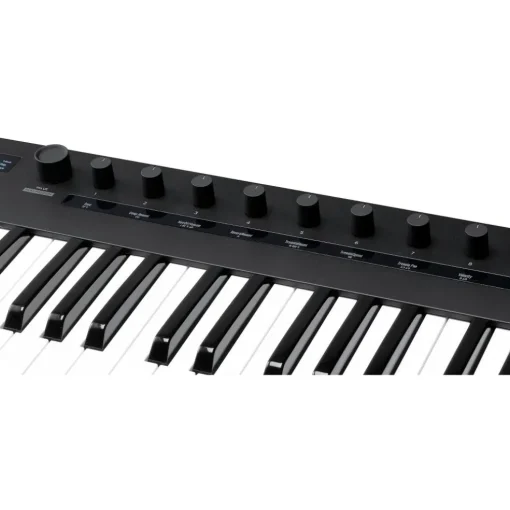

• Pitch bend wheel, modulation wheel, parameter control knobs x 8

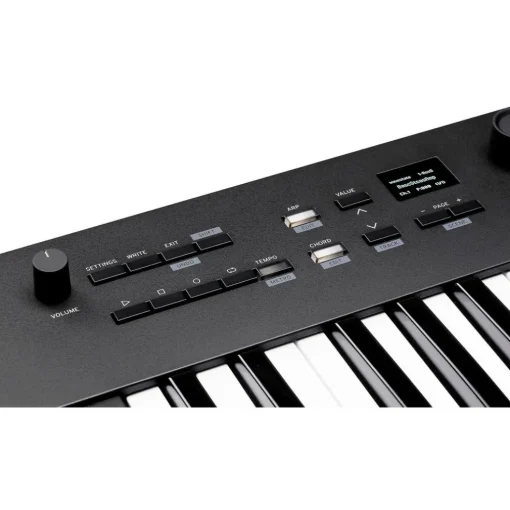

• VOLUME knob, SETTINGS button, WRITE button, EXIT button, SHIFT button, ARP button, CHORD
• button, VALUE ^/ buttons, VALUE dial, PAGE -/+ buttons, transport buttons, TEMPO button,
• OCTAVE -/+ buttons

Display

• Main display: Organic EL (electro-luminescence) display
• Sub display: Organic EL displays x 8

Scenes

• No. of scenes: 16
• Arpeggiator
• Arpeggio rhythm patterns: 20
• Chord mode
• Preset chord sets: 32
• User chord sets: 32

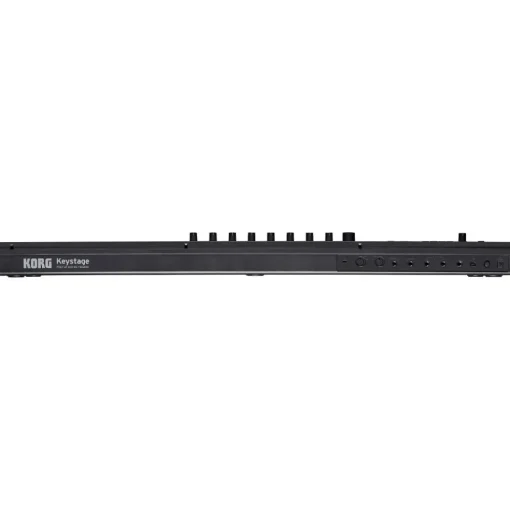

Input/Output Jacks and Ports

• USB port, MIDI (IN, OUT connectors), EXPRESSION jack, DAMPER jack, AUDIO OUT (L/MONO, R jacks), headphone jack

Audio Output

• AUDIO OUT (L/MONO, R): 6.3 mm TS phone jack (unbalanced)
• Headphones: 6.3 mm stereo phone jack

Control Inputs

• DAMPER (half-damper supported)
• EXPRESSION
• MIDI
• IN, OUT
• USB
• Type B
• MIDI/audio interface
• MIDI: 1 in/1 out
• Audio: 2 channel out
• Audio format: 44.1kHz, 16-bit

Power Supply

• USB bus power or AC adapter (9VDC, KORG KA350, sold separately)

Power Consumption

• 5V/500 mA or less (when powered via USB)

Power Consumption

• 4W (when using an AC adapter)

Dimensions (W x D x H)

• Keystage 49: 814 x 234 x 82 mm/32.05″ x 9.21″ x 3.23″
• Keystage 61: 979 x 234 x 82 mm/38.54″ x 9.21″ x 3.23″

Weight

• Keystage 49: 4.2 kg/9.26 lb.
• Keystage 61: 5 kg/11.02 lb.

Included items

• USB cable (Type A-Type B), expansion plate, Quick Start Guide, Precautions
• * Specifications and appearance are subject to change without notice for improvement.
• * is a registered trademark of Medeli, developed with Ashun Sound Machines.
• * All product names and company names are the trademarks or registered trademarks of their respective owners.
