- Speaker acts as an acoustic point source; there is no lobing off-axis
- Highly detailed imaging for highly accurate mixing
- Easy to perceive subtle details; allows users to work with more confidence and more quickly
- No air distortion from the coaxial speakers
- Greater dynamic rangeÂ
- Accurate low end to the bottom of the frequency response
- Reliable response allows for mixes that will translate well to other systems
- Extended bass response
- Port tube does not add to noise floor
- Monitors will sound as neutral as possible in a variety of different settings
- Users can mix in rooms that are not ideal mixing environments
- Low heat generation
- Powered: Yes
- Amplifier class: D
- Power configuration: Tri-amped
- LF Power: 60W
- Mid-range power: 40W
- HF Power: 40W
- Total power: 140W
- LF Driver: 8″ Poly-coated paper
- Mid-range driver: 4″ Optimized profile poly-coated paper
- HF Driver: 1″ Textile dome
- Frequency response: (-10 dB) 37Hz–25kHz
- Frequency range: (±3 dB) 45Hz–21kHz
- LF to Mid-range crossover: 280Hz
- Mid-range to HF Ccossover: 2,800Hz
- SPL: 85 dB Continuous at 2.8 meters with 20dB headroom
- Max SPL: 117dB
- System THD: <1% from 50Hz to 250Hz
- <0.5% from 250 Hz to 400kHz
- <.3% from 400 Hz to 20kHz
- (85dB SPL @1m)

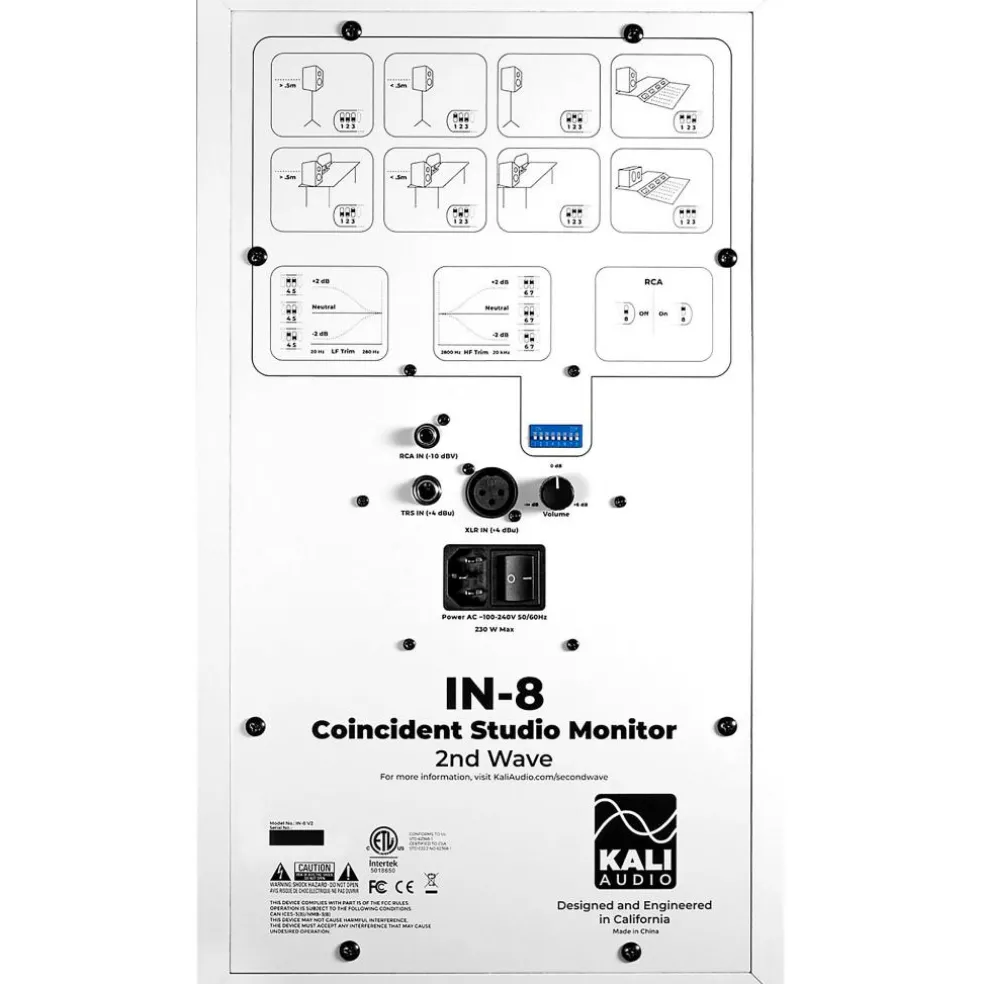

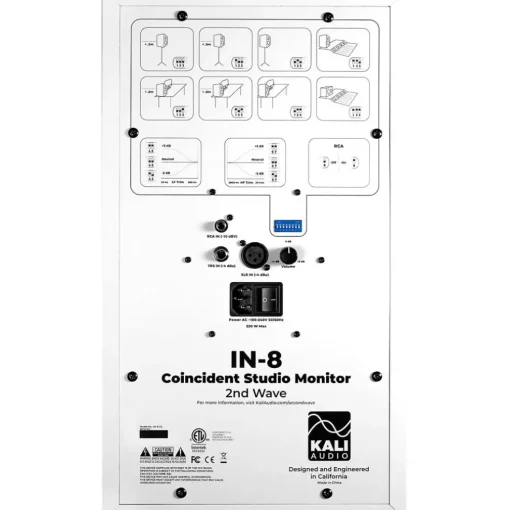

- Inputs: 1 x TRS
- 1 x XLR
- 1 x RCA
- TRS/XLR Input sensitivity: +4dBu
- RCA Input sensitivity: –10dBV
- HF Trim: -2dB, ±0dB, +2dB
- LF Trim: -2dB, ±0dB, +2dB
- Boundary EQ settings:
- Free space (on stands, away from walls)
- On stands, next to a wall
- Meter bridge, vertical
- Meter bridge, horizontal
- On a desk, away from walls
- On a desk, next to a wall
- Enclosure: Front ported
- Dimensions (HxWxD) 17.75″ x 11.25″ x 10″
- Product weight: 23 lb.
- Shipping weight: 25 lb.
- In the Box: IN-8W V2 studio monitor, local power cable and quickstart guide
