Fostex 6301DT 4″ Powered Studio Monitor with DANTE (Each)
Original price was: $399.00.$81.00Current price is: $81.00.
Model 6301-Series have been on the market since 1982 as the standard active monitor speaker in the broadcast and production facilities. Now, Fostex have redesigned the speakers with the latest D-class power amplifier and driver unit featuring energy-saving “auto stand-by” function.
The popular 6301N Active Monitor series now includes the model Dante version 6301DT. This model has the exact physical dimensions as the current 6301N. The 6301DT offers playing back any two channels of Dante network audio signals.
- 20W D-class power amplifier for higher output level and less power consumption with no heat sink
- Dedicated 4″ full range driver for clear audio reproduction
- Flat panel design to avoid inadvertent power-off or level change
- Auto Stand-by mode (compliant to ErP directive) for energy saving

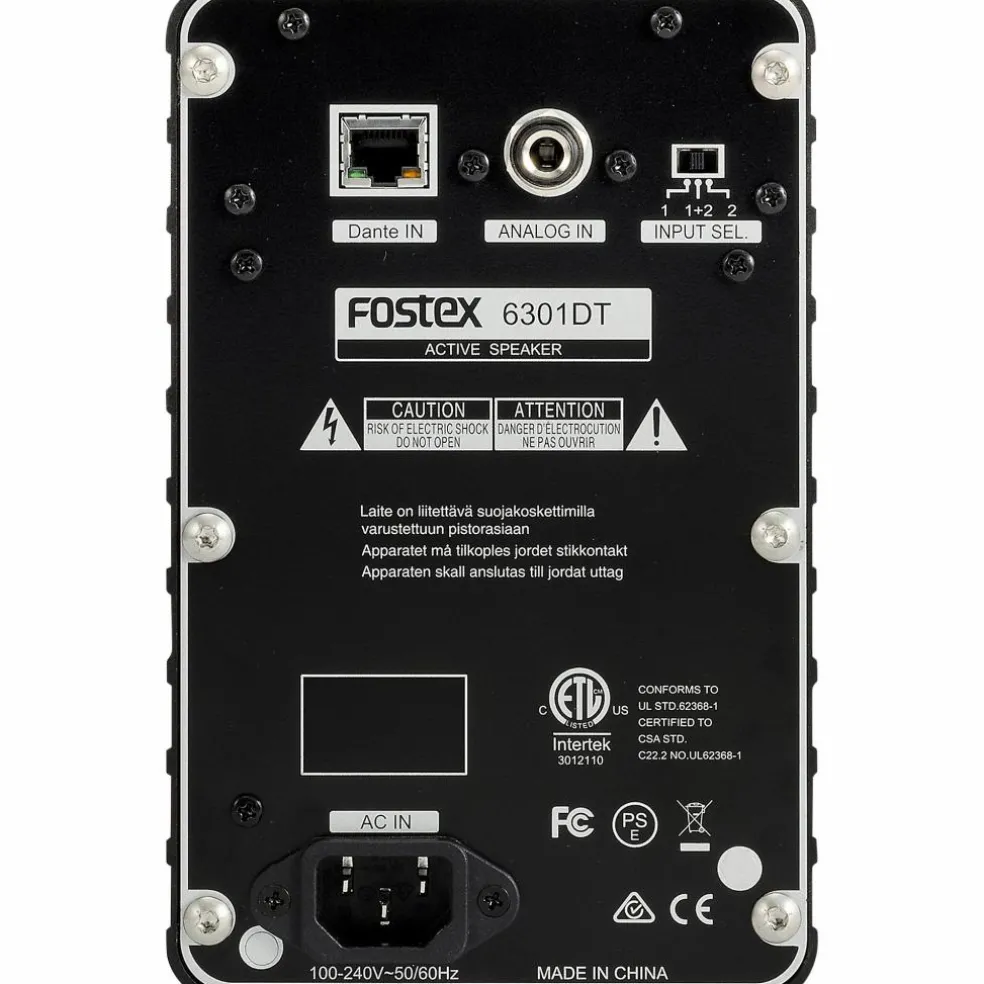

- RJ45 Dante & 1/4” TS analog inputs
- Supports sample rates up to 96kHz via Audinate’s Ultimo chip
- Two channels of monitoring in one monitor: acts as a two-channel device on the Dante network, with a switch on the back panel to select channel 1, 2 or 1+2 (mixed) for output
- Ultra-rugged die-cast aluminum enclosure
- Recessed front-panel knob, switch and speaker grille to prevent inadvertent damage in case of a fall
- Switching power supply accepts 100 V to 240 V AC
- Physical dimensions identical to the rest of the 6301N series for easy upgrade
- Optional EB-6301 mounting bracket allows easy surface-mounting at any angle
Speaker Section
- Enclosure type: closed
- Unit: 4” full range
- Frequency response: 70Hz–15kHz
- Sound Pressure Level: 85dB / W (1m)
- Maximum SPL: 98dB
Amplifier SectionInputs
- All Models: Connector: 1/4” TS Phone (unbalanced)
- Input Impedance: 10k ohm or more
- 6301NX Connector: XLR-3-31 (transformer balanced)
- Input Impedance: 10k ohm or more
- 6301NE Connector: XLR-3-31 (electrically balanced)
- Input Impedance: 10k ohm or more
- 6301ND Connector: XLR-3-31 (IEC 60958 AES/EBU)
- Input Impedance: 110 ohm or more
- 6301DT Connector: RJ45 (Dante)
Output (Thru)
- 6301ND Connector: XLR-3-32 (IEC 60958 AES/EBU)
- Rated output: 20W
- Distortion (T.H.D.): 0.05% (1kHz / 1W output)
- Residual Noise: -70dBV or less (NB/NE/NX). -65dBV (DT)
- -65dBV or less (ND)
- Input Sensitivity: 1/4” TS phone: -14dBV (0.2Vr.m.s.)
- XLR: +4dBu (1.2Vr.m.s.)
- XLR(Digital): -12dBFS
- Auto Stand-by: active after approx. 25 min. of continuous input lower than the threshold level
General
- Dimensions (WxHxD): 4.72″ x 7.44″ x 4.72″
- Weight NB/NE/ND: 4.85 lb.
- Weight NX/DT: 5 lb.
- Power Requirement: AC 100 – 240V (50/60Hz)
- Power Consumption: 10W (less than 0.5W in stand-by mode)
