- Anodized aluminum chassis housing and master volume knob
- Professional grade 24-bit/192kHz digital conversion
- 2 class A microphone preamps with +48 V phantom power
- 2 x XLR/TRS combo inputs on the front panel for Line / Mic / Instrument recording

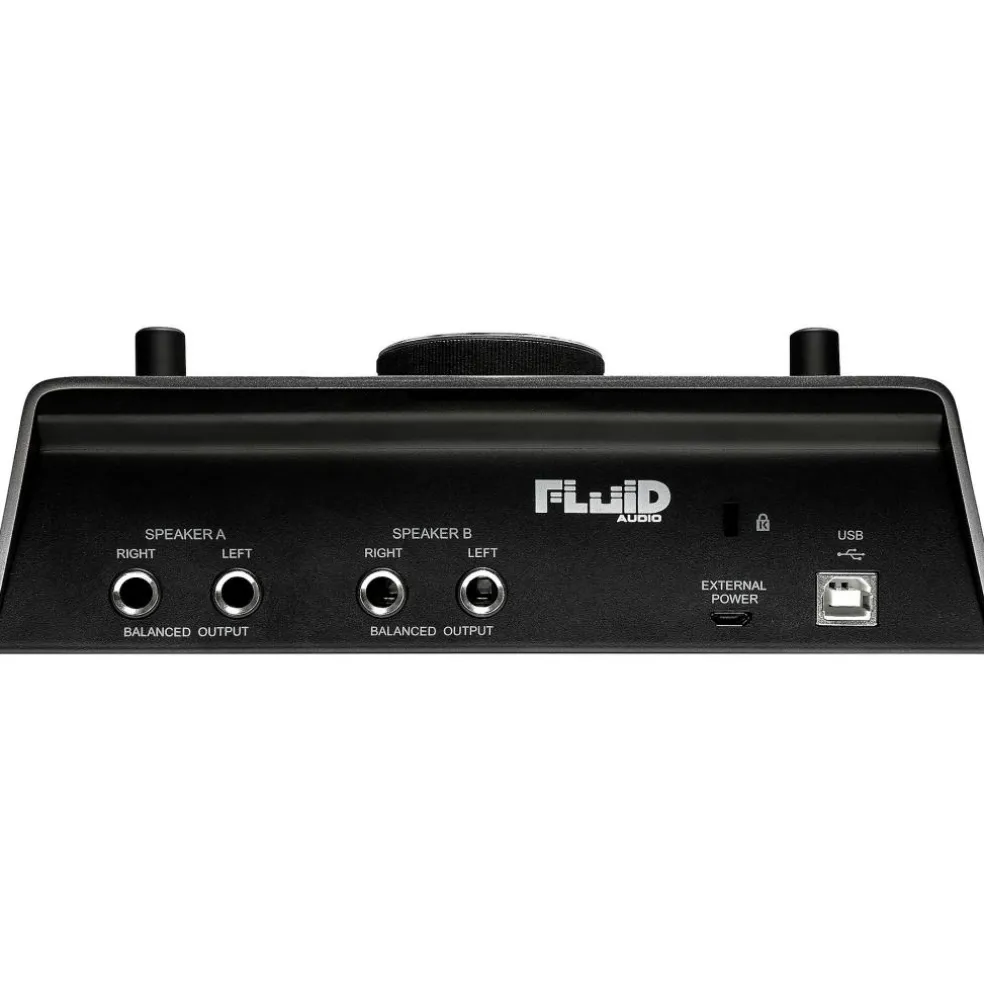

- 4 TRS outputs, for 2 monitor pairs with A / B button
- 1 headphone output with separate volume control, 2 x 75mW
- LED indicators on all knobs
- Powered by USB 2.0 connection
- Cubase LE DAW software included via download for PC and Mac
- Cubasis LE DAW for iPad (IOS 9 and later)
- OS support: OSX 10.6.4 and newer, Windows 7/8/8.1 and Windows 10 x86/x64
- Max bit depth:24-bit
- Max sampling rate:192kHz
- Frequency response:20Hz – 20kHz
Inputs
- Total inputs: 2
- Analog inputs:2
- Mic preamps:2
- XLR/TRS combo jacks:2
- 1/4” only jacks:2
Outputs
- Total outputs: 4
- Analog outputs:4
- 1/4” only jacks:4 TRS
Other Connectivity
- Connections:USB 2.0
- Headphone output(s):1
Onboard Features
- Computer platform:Mac, Windows
- Phantom power:Yes
- Direct monitoring:Yes
- Onboard DSP:No
- Metering:No
- Display:No
- Monitor control:Yes
- Headphone control:Yes
