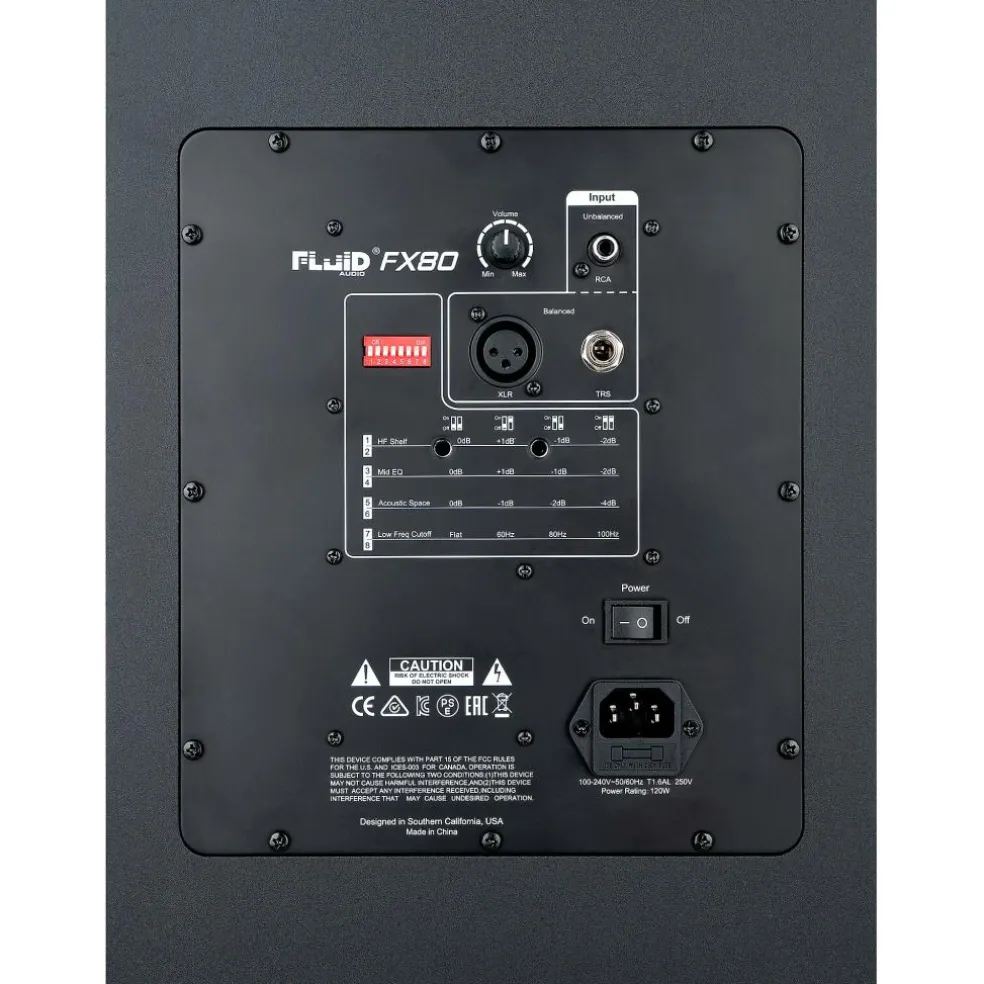

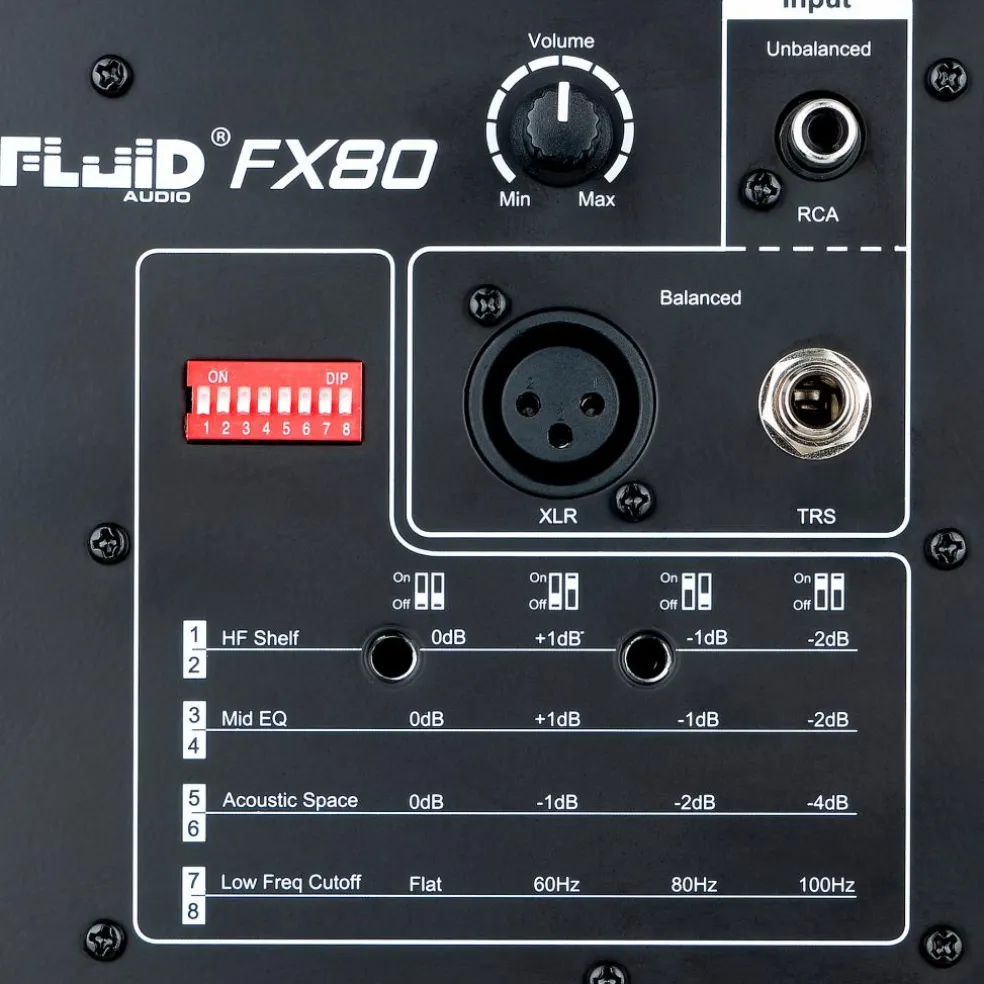

The updated FX Series features Class-D amplification, offering more clean, reliable power, more headroom, and powerful DSP integration with digitally controlled crossover. The FX Series monitors also come equipped with boundary control EQ switches, that allow you to compensate for home or project studios that may not have been treated or just need to be adjusted due to their proximity to the wall behind them.

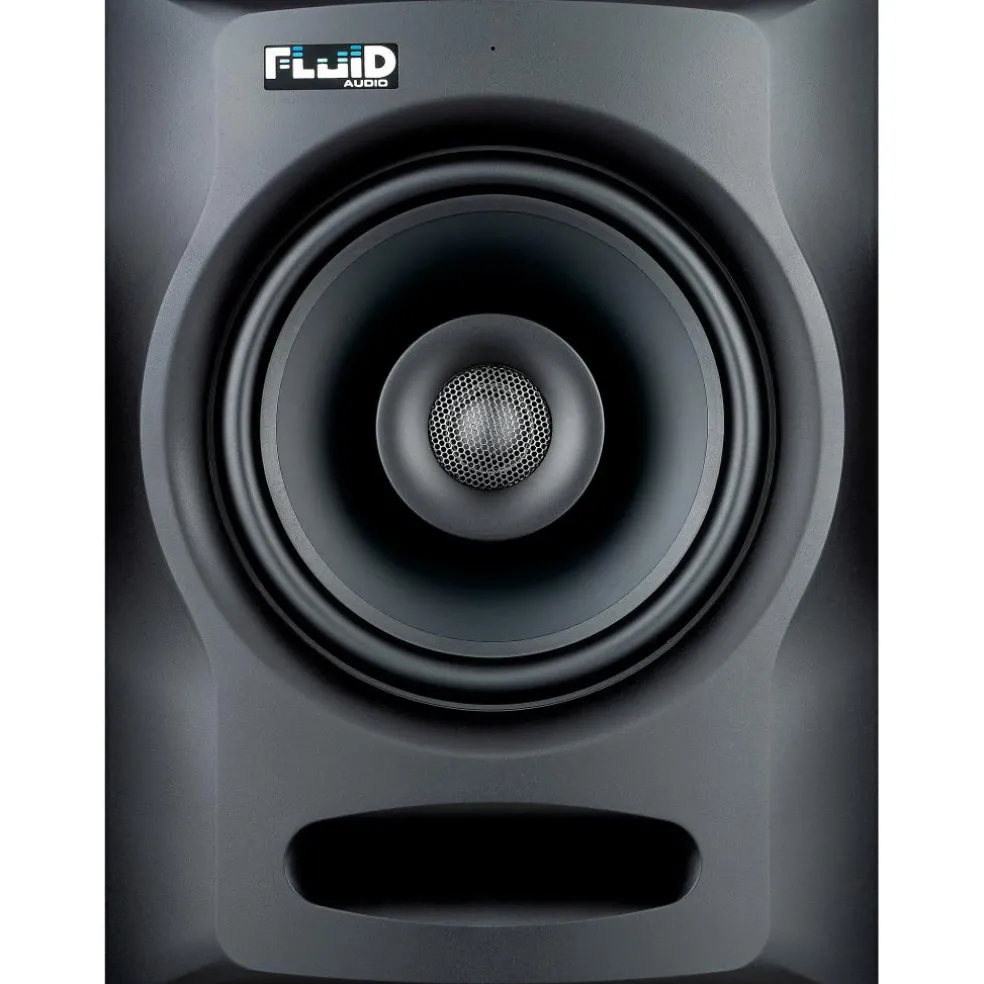

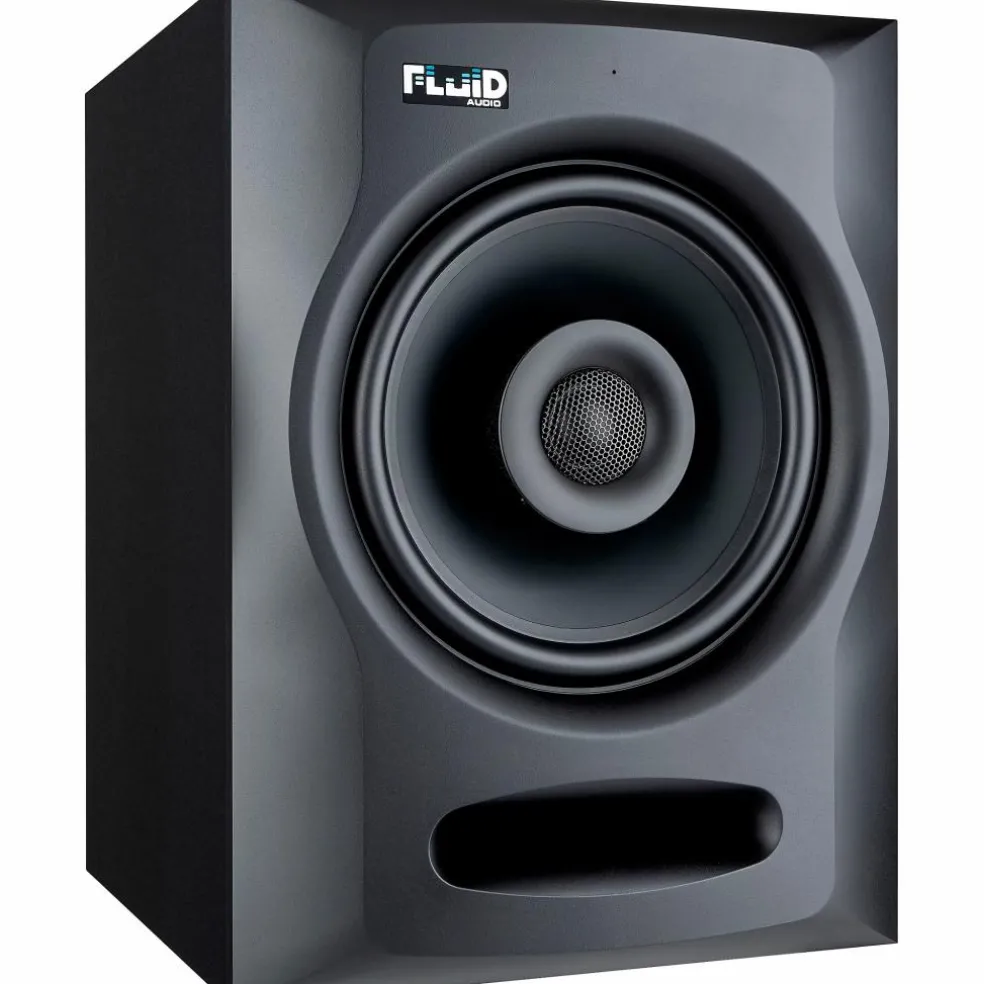

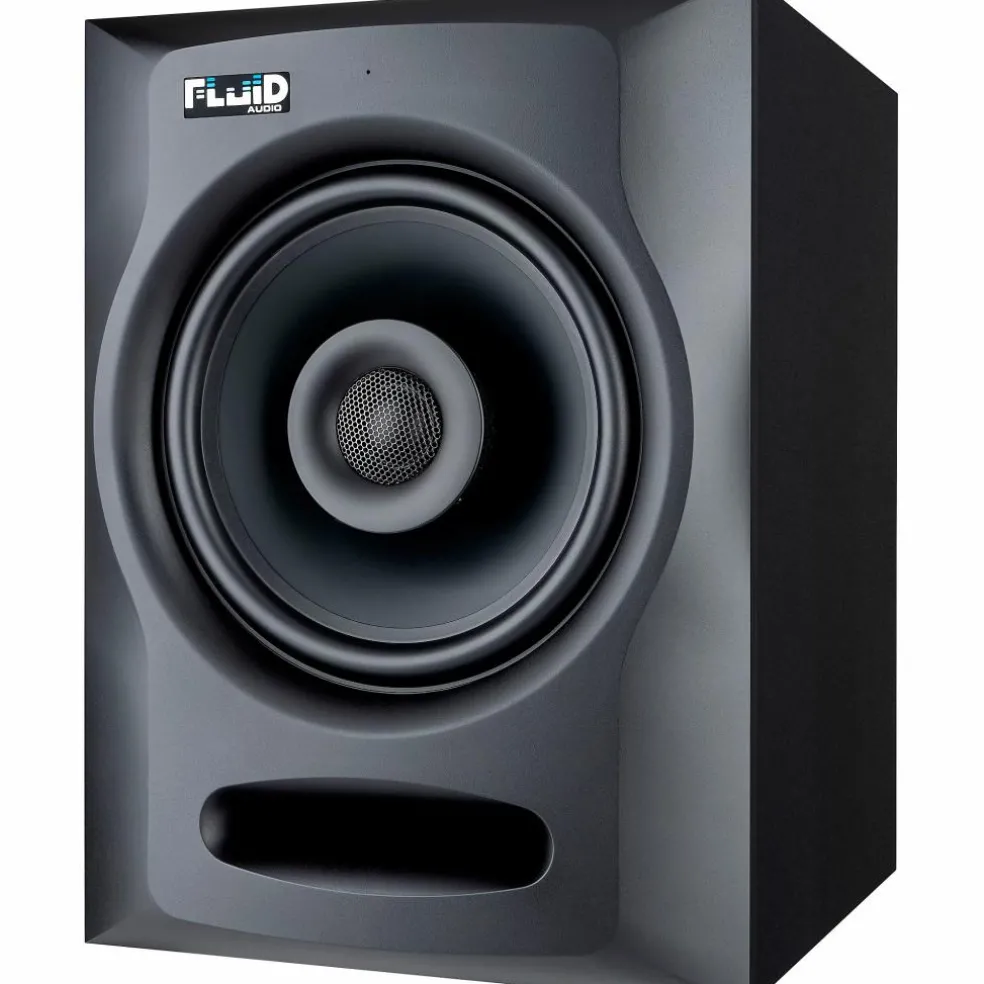

The FX80’s front-loaded, bass-reflex slot port tunes the cabinet to maximize the bass output efficiency of the speaker. It is placed on the front panel not only to directly radiate the bass energy towards the listener, but also for flexibility of placement in your studio.
- Frequency response: 35Hz–22kHz (+/- 3dB)
- Crossover frequency: 2.4kHz
- Low-frequency amplifier power: 60W
- High-frequency amplifier power: 50W
- Signal-to-noise: 90dB (typical A-weighted)
- Polarity: Positive signal at + input produces outward LF one displacement
- Input impedance: 20k ohms balanced, 10k ohms unbalanced
- Input sensitivity: 85 mV pink noise input produces 95dBA output SPL @ one meter with volume control at maximum
- Power: 100V-240V~50/60Hz
- Protection: RF interference, output current limiting, over temperature, turn-on/off transient, subsonic filter, external mains fuse
- Cabinet: Vinyl-laminated MDF
- Size (single monitor): 13.4″ x 10″ x 11.6″ (340 mm x 254 mm x 295mm)
- Weight (each): 7.8 kg / 17.2 lb.Â
