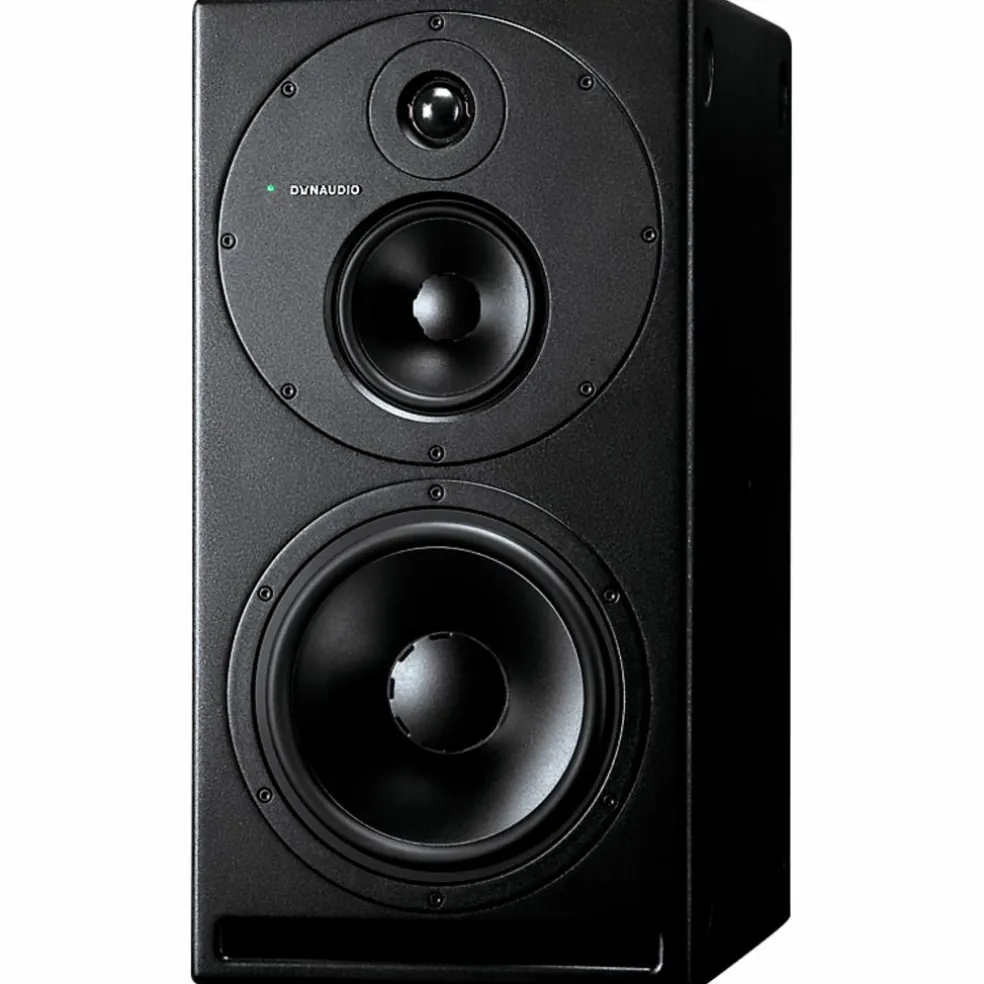

- Designed, developed, tested and hand-made at Dynaudio HQ in Denmark
- Each speaker is individually calibrated before it leaves the factory
- Core’s DSP optimizes performance for positioning, sound balance and bass extension
- Each driver has its own dedicated class-D amplifier: 500W each for the woofer and midrange drivers, and a 150W amp for the tweeter.
- Dynaudio’s already legendary high-frequency driver has been redesigned and re-engineered for high-performance professional use
- Tweeter: 1″
- Midrange: 5″
- Woofer: 9″
- Inputs: Analogue and AES3 digital inputs
- Maximum 24-bit/192kHz: Depending on input signal
- Maximum SPL: 112dB @ 1 m anechoic, 118dB half space
- Crossover frequency: 385Hz (LF/MF) / 5000Hz (MF/HF)
- Frequency response: 36Hz – 31kHz -6dB
- Frequency response: 42Hz – 27kHz +/- 3dB
- Principle: Front-loaded bass reflex
- Amplifiers: Pascal Class-D. HF 150 W / MR 500 W / LF 500 W
- Dimensions (L x D x H): 11″ x 15″ x 21.65″
- Weight: 54.2 lb.
