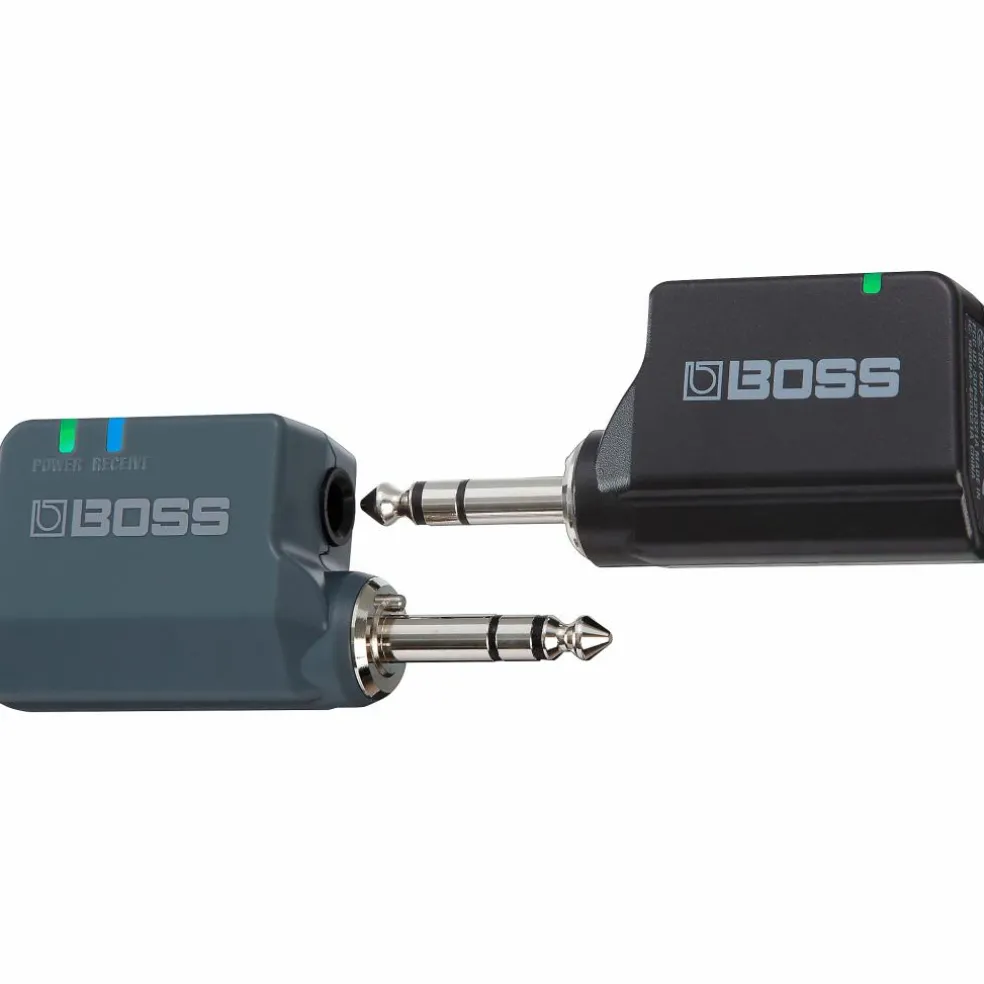

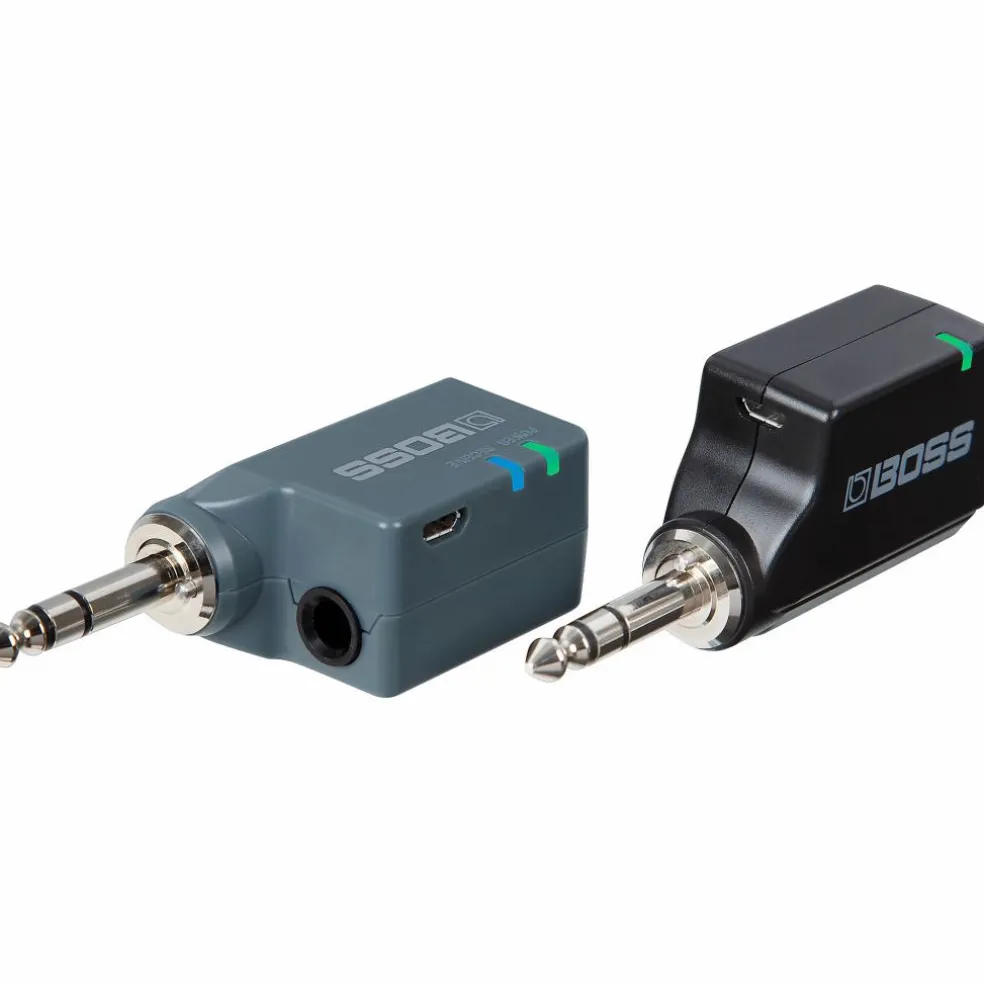

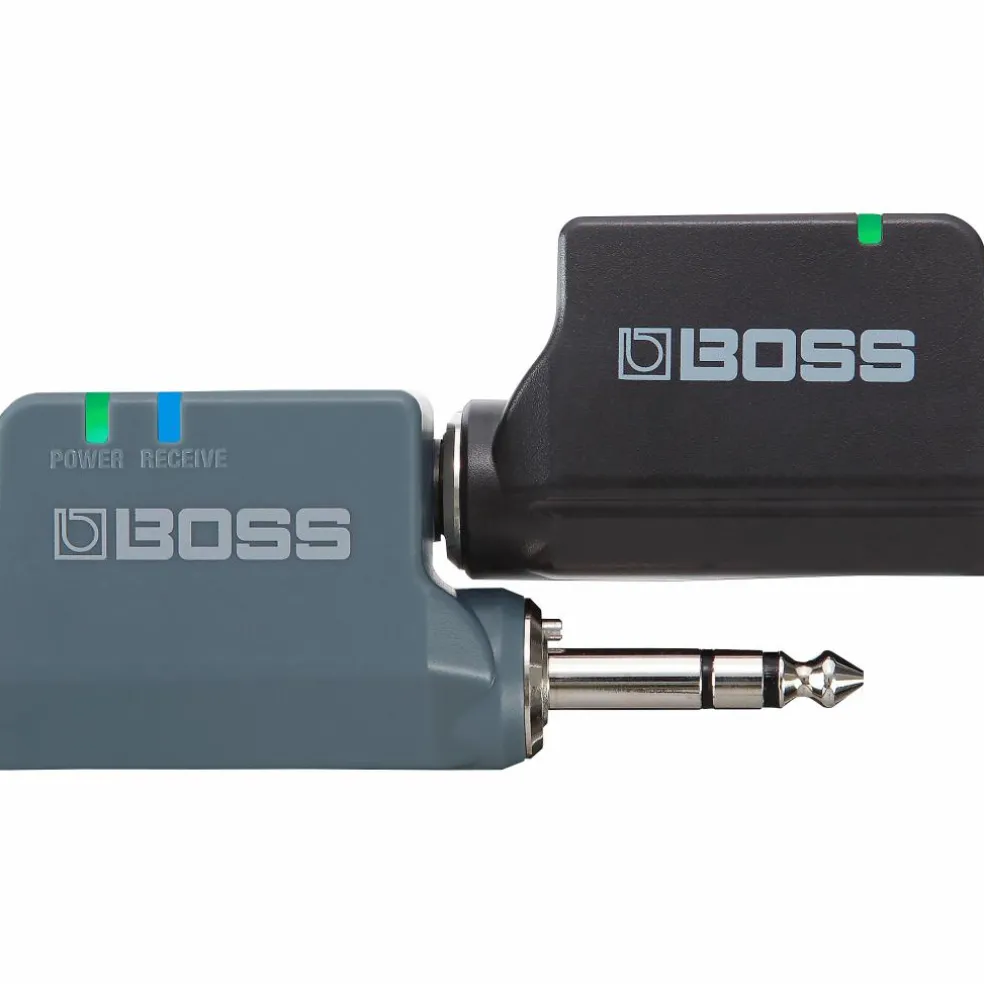

BOSS WL-20L Guitar Wireless System
$92.00
The WL-20L model is functionally identical to the WL-20, with the exception that it eliminates cable tone simulation. This makes it the best choice for instruments where cable capacitance has little or no effect on the tone, such as an acoustic/electric guitar with an onboard preamp, a guitar or bass with active pickups, or a line-level device like a keytar or Roland’s Aerophone digital wind instrument. The WL-20L also works great with passive pickups if you don’t need the subtle treble roll-off provided by cable tone simulation.
Once you experience the easy wireless independence provided by the WL-20 series, you’ll never go back to using a standard cable again. With no worries about cable management, you’re able to move about freely while playing at home, jamming with friends, and performing on stage. During sound check at a gig, you can listen to your tone out front and dial in the best sound for your audience. And with the ability to roam and interact with other musicians, your live shows will be more dynamic and entertaining than ever.
Acessories
Owner’s Manual
Leaflet USING THE UNIT SAFELY
Transmitter
Micro USB cable for charging (*1)- *1: Use a standard USB AC adaptor (5 V/over 0.5 A) for charging.
Wireless Forma
- t
- BOSS proprietary digital audio format
Wireless carrier frequency
- 2.4 GHz
Compatible Channels
- 14
- (May vary due to local conditions)
Transmission Range
- 50 feet line-of-sight
- (May vary due to local conditions)
Latency
- 2.3 ms
Dynamic Range
- 110 dB or greater
Frequency Response
- 20 Hz–20 kHz
Nominal Output Level
- -10 dBu
Output Impedance
- 1 k ohm
Recommended Load Impedance
- 10 k ohms or greater
Indicators
- POWER
- RECEIVE
Connectors
- Output plug: 1/4-inch TRS phone type
- TRANSMITTER jack: 1/4-inch TRS phone type
- DC IN 5 V port: USB Micro-B type
Power Supply
- Rechargeable lithium-ion battery
- Supplied from the DC IN 5 V port
Current Draw
- During wireless operation: 60 mA
- While charging: 500mA
Battery charging time
- Charging only the receiver: Approximately 3 hours
- Charging simultaneously with the transmitter: Approximately 4 hours
Expected battery life under continuous use
- Approximately 10 hours
- * These figures will vary depending on the actual conditions of use.
Width
- 87 mm
- 3-7/16 inches
Depth
- 25 mm
- 1 inches
Height
- 38 mm
- 1-1/2 inches
Weight
- 60 g
- 3 oz
Specifications-Transmitter
Nominal Input Level
- -10 dBu (1 M ohm)
Indicator
- BATTERY
Connectors
- Input plug: 1/4-inch TRS phone type
- DC IN 5 V port: USB Micro-B type
Power Supply
- Rechargeable lithium-ion battery
- Supplied from the DC IN 5 V port
Current Draw
- 350mA
Battery charging time
- Approximately 3 hours
- Expected battery life under continuous use
- Approximately 12 hours
- * These figures will vary depending on the actual conditions of use.
Width
- 87 mm
- 3-7/16 inches
Depth
- 22 mm
- 7/8 inches
Height
- 36 mm
- 1-7/16 inches
Weight
- 43 g
- 2 oz
