- Designed for suspension over choirs, instrumental groups and theater stages
- Wall/ceiling plate power module permits permanent installation in standard metal U.S. single gang electrical box
- UniLine polar pattern provides narrow 90 acceptance angle
- Superior off-axis rejection for maximum gain before feedback
- UniGuard RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- UniSteep filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
- Accepts interchangeable elements to permit angle of acceptance from 90 to 360
- Low-profile design with low-reflectance finish for minimum visibility
- Element: Fixed-charge back plate, permanently polarized condenser

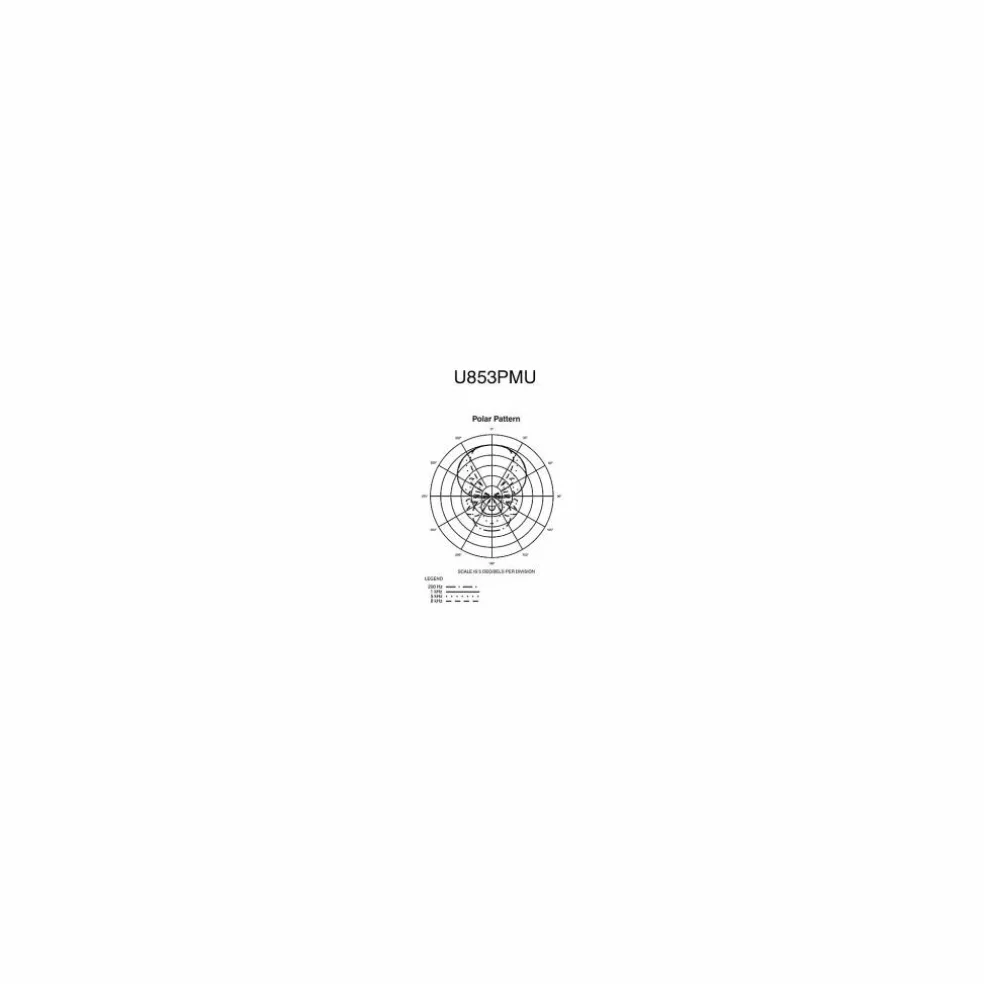

- Polar Pattern: Line Cardioid

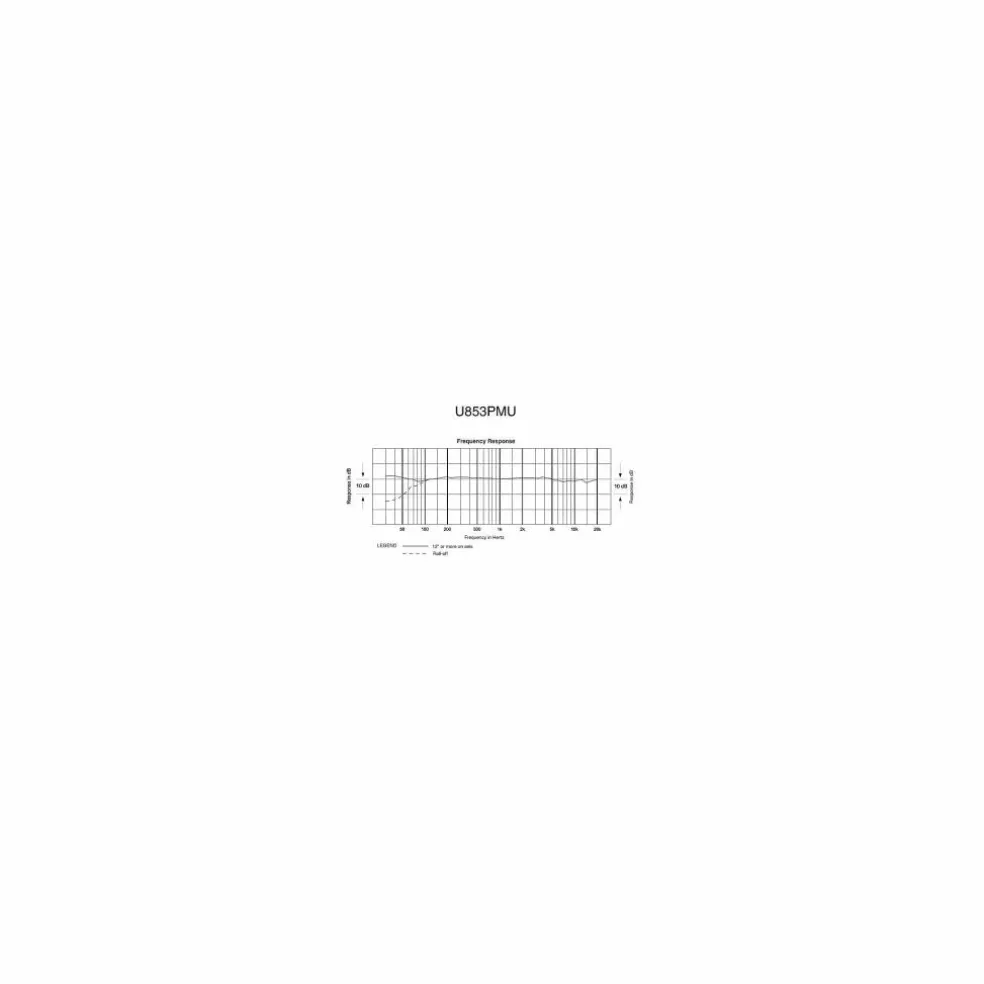

- Frequency Response: 30-20,000 Hz
- Low Frequency Roll-off: 80 Hz, 18 dB/octave
- Open Circuit Sensitivity: ”35 dB (11.2 mV) re 1V at 1 Pa
- Impedance: 200 ohms
- Maximum Input Sound Level: 124 dB, 1 kHz at 1% T.H.D.
- Dynamic Range (Typical): 102dB, 1 kHz at Max SPL
- Signal-To-Noise Ratio: 72 dB, 1 kHz at 1 Pa
- Phantom Power Requirements: 11-52V DC, 2 mA typical
- Switches: Flat, roll-off; 0 dB/ +10 dB gain setting
- Weight (microphone): 1.1 oz (14 g)
- Weight (Power Module): 3.4 oz. (97 g)
- Dimensions (Microphone): 6.14″ (156.0 mm) long, 0.48″ (12.2 mm) diameter
- Dimensions Power Module (H x W x D): 2.80″ x 4.55″ x 1.42″, (71.0 mm x 115.5 mm x 36.0 mm)
- Output Connector: Screw terminals
- Cable: 25′ (7.6 m) long, permanently attached 0.13″ (3.2 mm) diameter, 2-conductor, shielded cable with TA3F-type connector
- Optional interchangeable elements: UE-C cardioid (120); UE-H hypercardioid (100); UE-O omnidirectional (360);
- Accessories Furnished: AT8154 two-stage foam windscreen; AT8451(WH) steel hanger; AT8534 wall/ceiling power module; AT8438 5/8″-27 stand adapter
- Audio Technica: M32
