AEA Microphones R84A Active Ribbon Microphone

AEA Microphones R84A Active Ribbon Microphone

$88.00

Categories: Mics & Wireless, Ribbon Microphones Tag: AEA MICROPHONES

Description
Reviews (0)

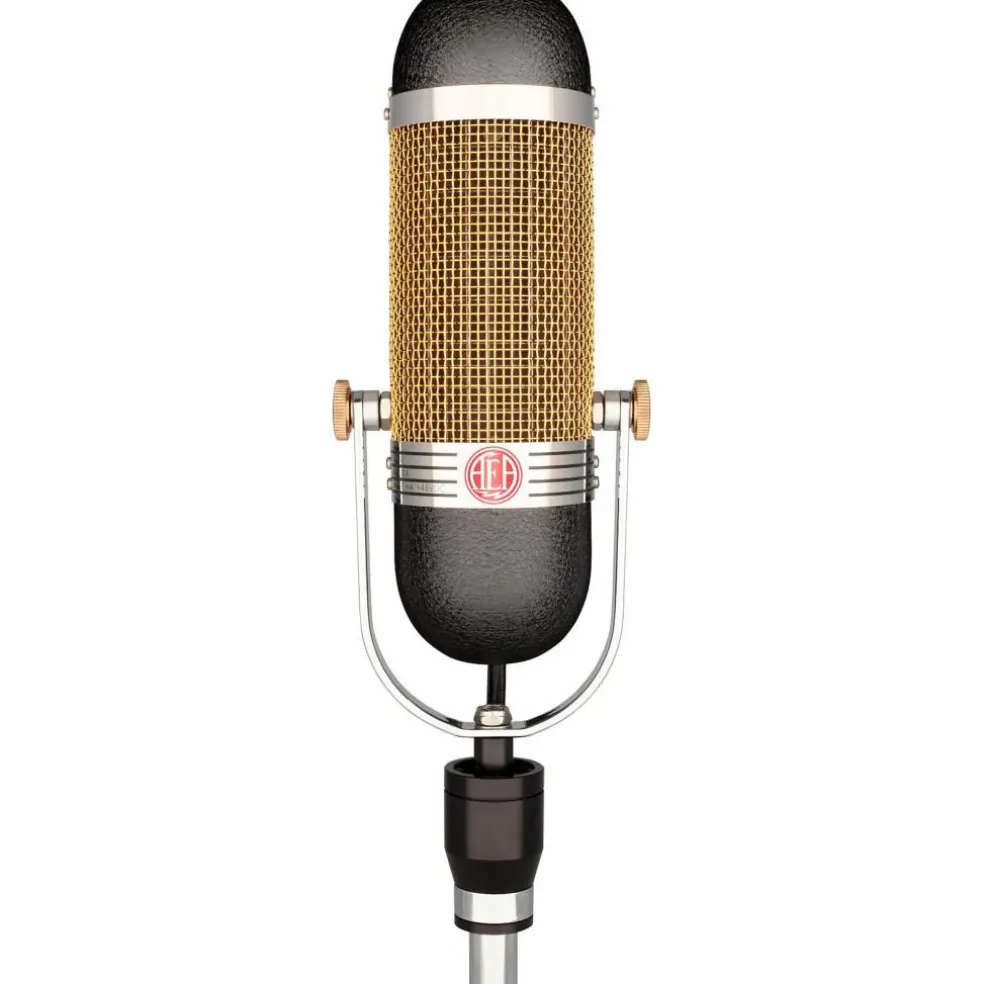

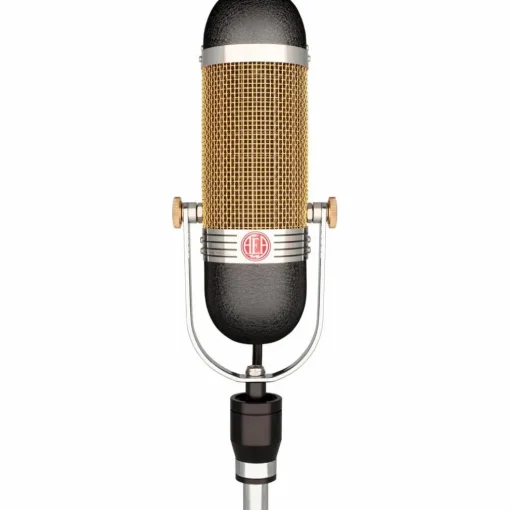

The R84A is a pill-shaped, side-address, phantom-powered ribbon microphone with a bidirectional (or figure-of-8) pickup pattern. It is assembled with the same Big Ribbon and tuning (16.5Hz) as the R44 and shares many of the unique sound characteristics with its historic predecessor. With phantom-powered JFET electronics and a custom German transformer, the R84A achieves optimal performance with a wide choice of preamps ranging from vintage high-end models to USB audio interfaces in home studio setups. Designed to accommodate distant and medium miking duties, it exhibits a flat frequency response when placed 3 feet (1 meter) away from the source. As a result, the mic performs well on a variety of recording applications including vocals, brass, strings, woodwinds, guitars and drums. The R84A ribbon microphone continues to gain followers with its natural sound, articulate midrange and forgiving nature. Whether used for vocals or instruments, its performance is intimate, warm and detailed, yet never harsh.

Bleed Resistant

A significant and ever-present challenge in contemporary studio recording is minimizing “bleed” (also called “leakage” or “crosstalk”) from nearby instruments into the various microphones. The deep nulls of bidirectional ribbon microphones provide good rejection of unwanted sounds, which also can be beneficial in sound reinforcement situations where feedback is always a threat. While gobos can be effective in isolating performers from each other, they introduce their own set of problems—not the least of which are reflections in close proximity to the performers and/or microphones that result in comb-filter distortions. Since gobos usually are bulky, they also inhibit the ability of the musicians to hear and see each other easily. Such a setup requires complex headphone monitor mixes for the musicians.

Proximity Effect
Proximity effect is a characteristic of all directional microphones; it is a rise in low-frequency response that increases at closer working distances. While this can be used to good effect, particularly with male voices to give them an enhanced richness and depth, the potential trade-off is reduced articulation or clarity that can result from the masking effect on the treble due to “excessive” bass boost. The proximity on this mic effect begins at six feet (1.8 m) and can become huge. The RCA 44 was developed when studios were larger and mics were rarely used close up. The R84A has a more moderate proximity effect, better suited for closer use in contemporary studios. Designed to accommodate distant and medium miking duties, exhibits a flat frequency response when placed 3 feet (1 meter) away from the source.

Broad, warm and musically complex
Versatile; use it on almost anything
Integrally battles studio bleed
Tamped down but still present proximity effect

Operating Principle: Pressure gradient transducer

Directional Pattern: Bidirectional

Frequency Range: 20kHz

Maximum SPL: 141 + dB SPL (1% third harmonic > 1kHz)

Sensitivity: 6.3 mV/Pa (-44 dBv/Pa) into unloaded circuit

Output Impedance: 92 Ohm broadband

Recommended Load Impedance: 1 kOhm or greater

Phantom Power: P48 phantom power, 7 mA

Polarity: Pin 2 high for positive pressure on front of microphone

Polar Response: Native bidirectional, figure-of-8 pattern

Horizontal: Up to 90dB rejection at right angles to the front/back axis

Vertical: Level changes with angle of incidence, but frequency response is consistent

Transducer Element Material: Pure aluminum corrugated ribbon

Thickness: 1.8 μm

Width: 0.185″ (4.7 mm)

Length: 2.35″ (59.7 mm)

Microphone Dimensions

Height: 11.6″ (29.5 cm)
Width: 3.9″ (9.9 cm)
Depth: 2.5 in (6.4 cm)
Weight with cable: 3 lb (1.36 kg)
Shipping Weight: 4 lb (1.8 kg)
Connector: XLR-3M
Accessories Included: Vertical softcase, user manual, captive 10 ft. (3 meter) output cable with XLR-3M connector
